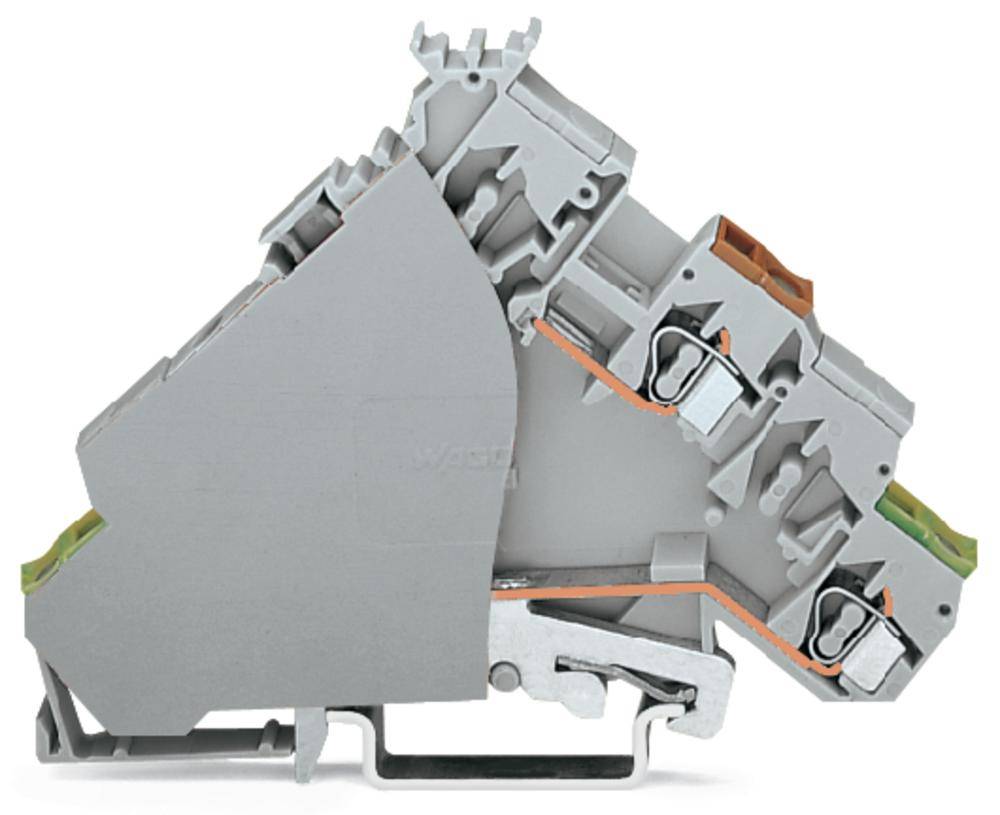

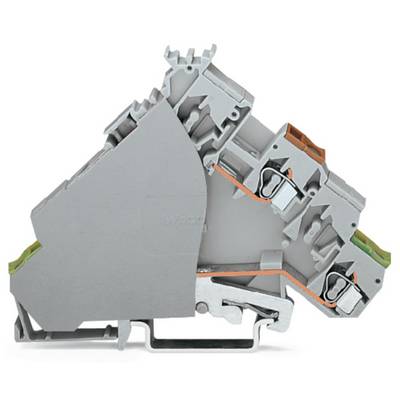

WAGO 280-586 Actuator terminal 6 mm Pull spring Configuration: L Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Actuator terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 7.04 / piece)
€ 352.10
plus VAT.
Highlights & Details
Actuator supply terminal block
- 280-586
- Industrial packaging, pack of 50
Technical specifications
- ACTUATOR SUPPLY T.BL.W.SCREEN CONN.
- Product type
Actuator terminal
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
2
- Pins per row
1
- Number of pins
2
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
280-586
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
280-586

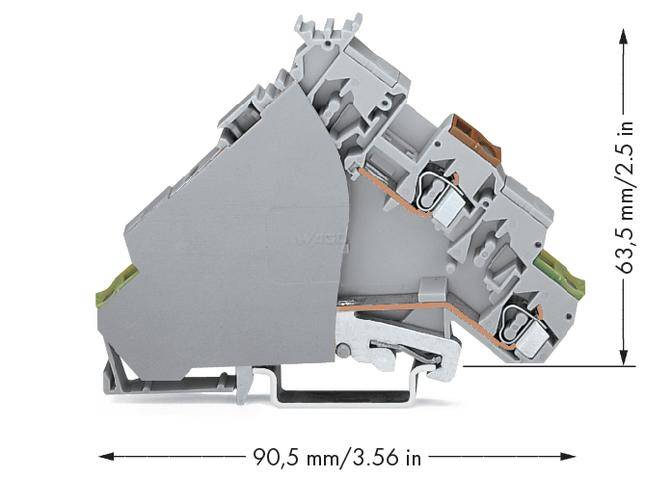

- Dim
(W x H) 6 mm x 63.50 mm
- Width
6 mm
- Height
63.50 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 535942 WAGO 280-586 Actuator terminal 6 mm Pull spring Configuration: L Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 535942 WAGO 280-586 Actuator terminal 6 mm Pull spring Configuration: L Grey 50 pc(s)
Description
With shield conductor connection, feed on the control cabinet side with cover plate, for actuators with shield conductor connection, for thermo-switch, gray.
