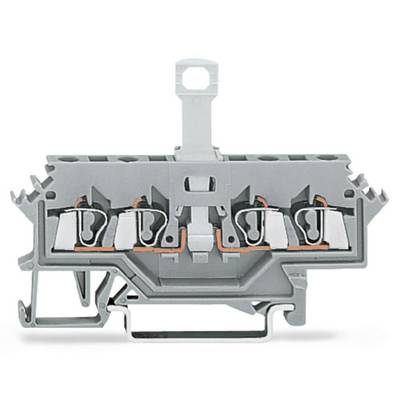

WAGO 280-632 N terminal 5 mm Pull spring Configuration: N Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.27 / piece)
€ 113.44
plus VAT.
Highlights & Details
4-conductor disconnect terminal block
- 280-632
- Industrial packaging, pack of 50
Technical specifications
- 4-COND. DISC.TERM. 2.5 SQMM BLUE
- Product type
N terminal
- Features
+ separator
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
5 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Blue
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
280-632
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
280-632
- Dim
(W x H) 5 mm x 52.50 mm
- Width
5 mm
- Height
52.50 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 536025 WAGO 280-632 N terminal 5 mm Pull spring Configuration: N Blue 50 pc(s)
User & Safety Instructions
User & Safety Instructions 536025 WAGO 280-632 N terminal 5 mm Pull spring Configuration: N Blue 50 pc(s)
Description
+ separator, blue.
