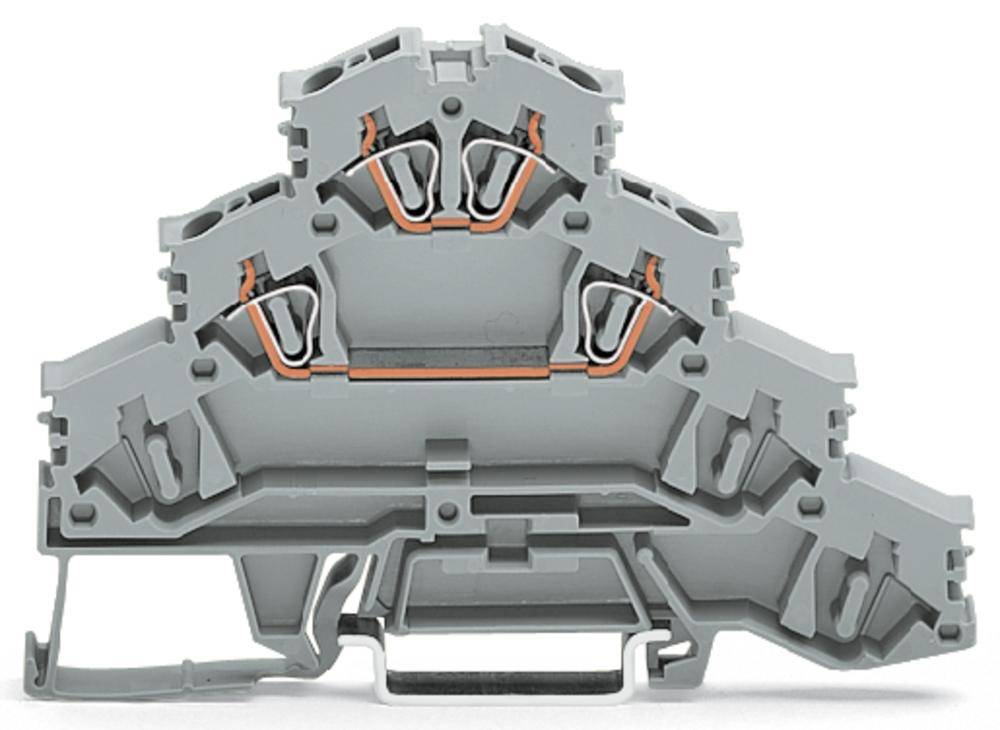

WAGO 281-531 Quadport continuity 6 mm Pull spring Configuration: L Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Quadport continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
20 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.94 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
Quadruple-deck rail-mounted terminal block
- 281-531
- Industrial packaging, pack of 50
Technical specifications
- RAIL MOUNT TERM BLOCK L1, L2, GREY
- Product type
Quadport continuity
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Clamp width
6 mm
- No. of rows
4
- Number of pins
7
- Factory colour
Grey
- Nominal current
20 A
- Nominal current - rounded value
20 A
- Nominal voltage
400 V
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Manufacturer part #
281-531
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
281-531

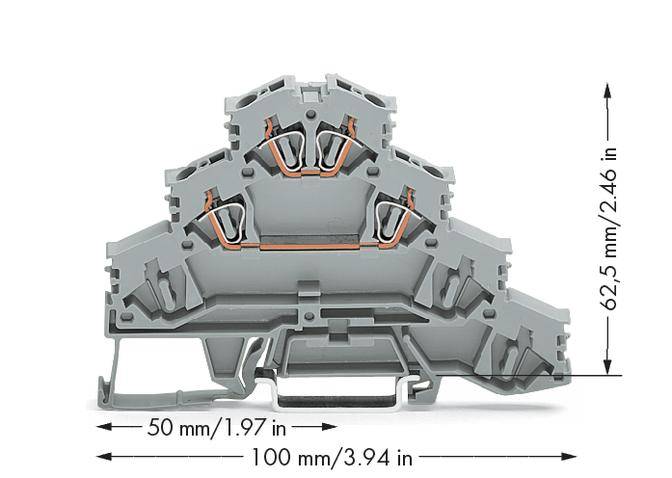

- Dim
(W x H) 6 mm x 62.50 mm
- Width
6 mm
- Height
62.50 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 536460 WAGO 281-531 Quadport continuity 6 mm Pull spring Configuration: L Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 536460 WAGO 281-531 Quadport continuity 6 mm Pull spring Configuration: L Grey 50 pc(s)
Description
Motor connection terminal block, L1-L2 gray.
