WAGO 281-604 Continuity 6 mm Pull spring Configuration: N Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
32 A
Datasheet (PDF)
Show alternatives
Sales and shipping:
Number (Package size 50 pc(s))
Total (€ 1.45 / piece)
€
Highlights & Details

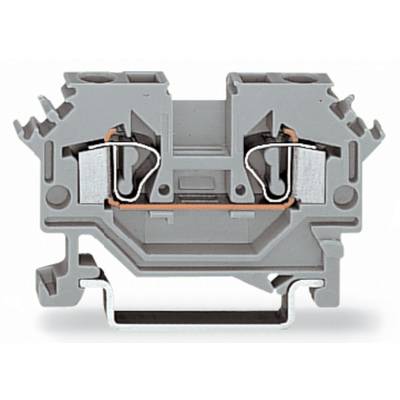

2-conductor through terminal block
- 281-604
- Industrial packaging, pack of 50
Technical specifications
- THROUGH TERM.BL. 4 SQMM BLUE
- Product type
Continuity
- Features
Complies with ATEX Ex I standards
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
6 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
800 V
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
281-604
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
281-604
- Dim
(W x H) 6 mm x 29 mm
- Width
6 mm
- Height
29 mm
- Contamination level
3
Documents & Downloads
Datasheet
Datasheet 536475 WAGO 281-604 Continuity 6 mm Pull spring Configuration: N Blue 50 pc(s)
User & Safety Instructions
User & Safety Instructions 536475 WAGO 281-604 Continuity 6 mm Pull spring Configuration: N Blue 50 pc(s)
Description
Complies with ATEX Ex i, blue.
