WAGO 281-668 Continuity 6 mm Pull spring Yellow 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Nominal current - rounded value
26 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.44 / piece)
€ 121.84
plus VAT.
14-day return policy included
Highlights & Details

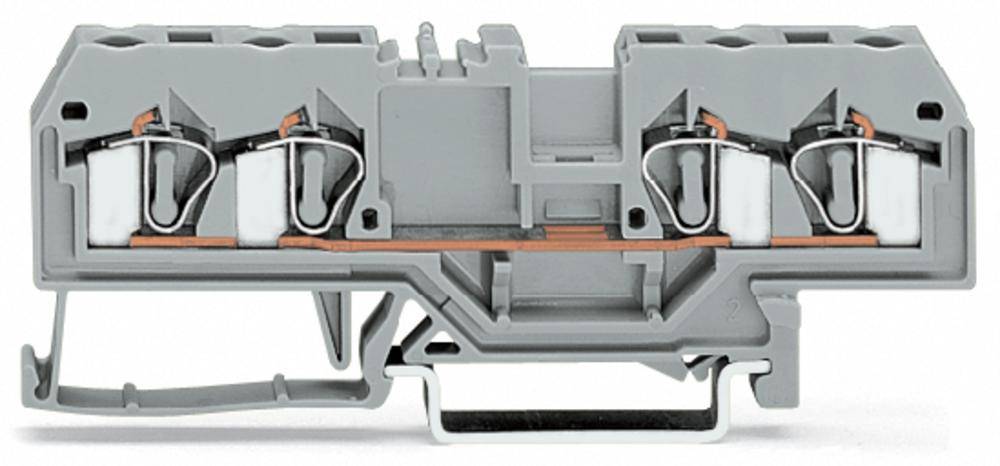

4-conductor through terminal block
- 281-668
Technical specifications
- RL MTD TRM BLK-2-YELLOW
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
6 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Yellow
- Nominal current
26 A
- Nominal current - rounded value
26 A
- Nominal voltage
800 V
- Min. stripping length
9 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
281-668
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
281-668
- Dim
(W x H) 6 mm x 29 mm
- Width
6 mm
- Height
29 mm
- Contamination level
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 536596 WAGO 281-668 Continuity 6 mm Pull spring Yellow 50 pc(s)
User & Safety Instructions
User & Safety Instructions 536596 WAGO 281-668 Continuity 6 mm Pull spring Yellow 50 pc(s)
Description
Yellow.
