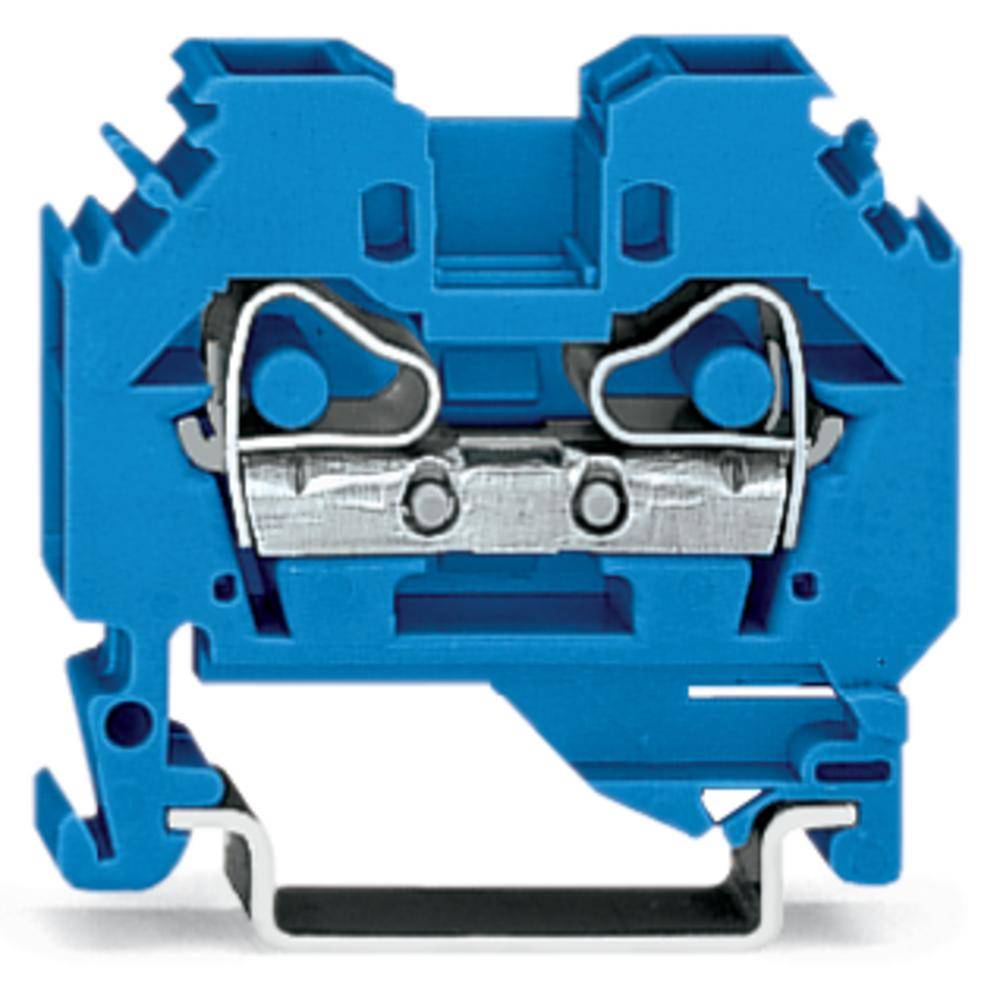

WAGO 282-104 Continuity 8 mm Pull spring Configuration: N Blue 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
41 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 1.93 / piece)
€ 96.63
plus VAT.
Highlights & Details
2-conductor through terminal block
- 282-104
- Industrial packaging, pack of 50
Technical specifications
- THROUGH TERM.BL. 6 SQMM BLUE
- Product type
Continuity
- Features
Complies with ATEX Ex I standards
- Connection
Pull spring
- Configuration
N
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Blue
- Nominal current
41 A
- Nominal current - rounded value
41 A
- Nominal voltage
800 V
- Min. stripping length
12 mm
- Stripping length (max.)
13 mm
- Manufacturer part #
282-104
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
282-104
- Dim
(W x H) 8 mm x 37 mm
- Width
8 mm
- Height
37 mm
- RoHS-compliant
Yes
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 536666 WAGO 282-104 Continuity 8 mm Pull spring Configuration: N Blue 50 pc(s)
User & Safety Instructions
User & Safety Instructions 536666 WAGO 282-104 Continuity 8 mm Pull spring Configuration: N Blue 50 pc(s)
Description
Complies with ATEX Ex i, blue.
