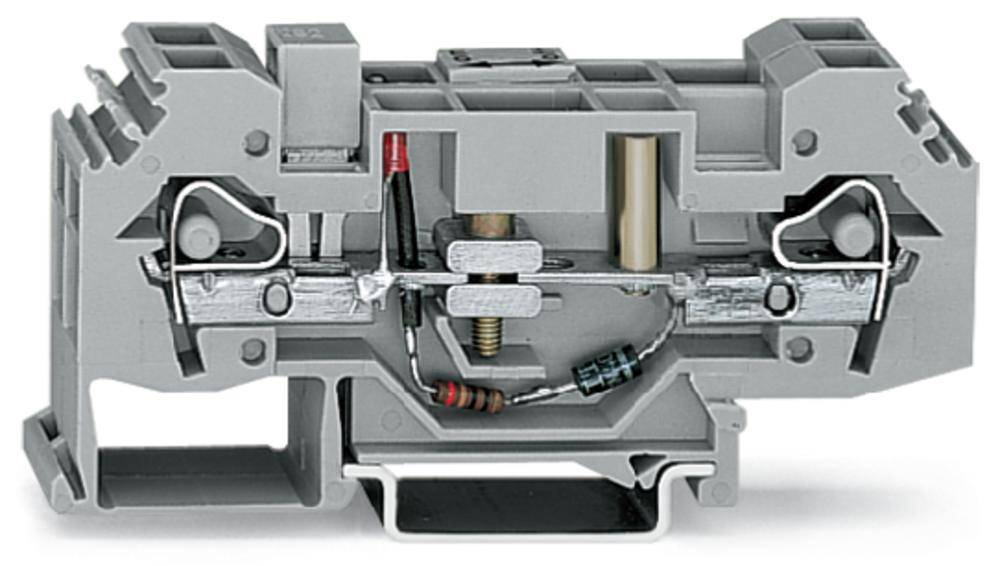

WAGO 282-138 N terminal 16 mm Pull spring Configuration: L Grey 12 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Content
12 pc(s)
Datasheet (PDF)
Number (Package size 12 pc(s))
Total (€ 37.75 / piece)
€ 452.94
plus VAT.
Highlights & Details
Ground conductor disconnect terminal block
- 282-138
- Industrial packaging with 12 pieces
Technical specifications
- N-COND. DISCONN. TERM.BL.110 V
- Product type
N terminal
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
16 mm
- No. of rows
2
- Pins per row
2
- Number of pins
4
- Factory colour
Grey
- Min. stripping length
12 mm
- Stripping length (max.)
13 mm
- Manufacturer part #
282-138
- Content
12 pc(s)
- Industrial packaging
Yes
- Type
282-138
- Dim
(W x H) 16 mm x 38.50 mm
- Width
16 mm
- Height
38.50 mm
Documents & Downloads
Datasheet
Datasheet 536693 WAGO 282-138 N terminal 16 mm Pull spring Configuration: L Grey 12 pc(s)
User & Safety Instructions
User & Safety Instructions 536693 WAGO 282-138 N terminal 16 mm Pull spring Configuration: L Grey 12 pc(s)
Description
120 V, gray.
