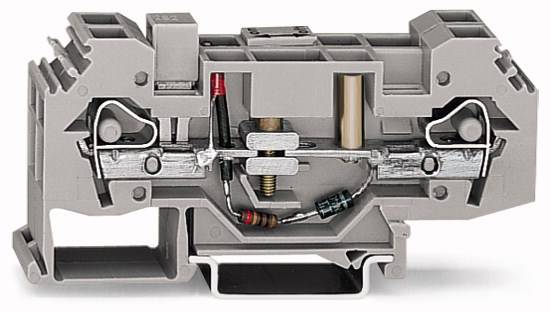

WAGO 282-141 N terminal 16 mm Pull spring Configuration: L Grey 12 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Datasheet (PDF)
Highlights & Details
Ground wire-disconnect terminal
- 282-141
Technical specifications
- Packaging type
Piece
- Product type
N terminal
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
16 mm
- No. of rows
1
- Pins per row
4
- Number of pins
4
- Factory colour
Grey
- Min. stripping length
12 mm
- Stripping length (max.)
12 mm
- Manufacturer part #
282-141
- Content
12 pc(s)
- Industrial packaging
Yes
- Type
282-141
- Dim
(L x W x H) 16 x 16 x 38.50 mm
- Width
16 mm
- Height
38.50 mm
- Length
16 mm
- Weight
45.1 g
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
