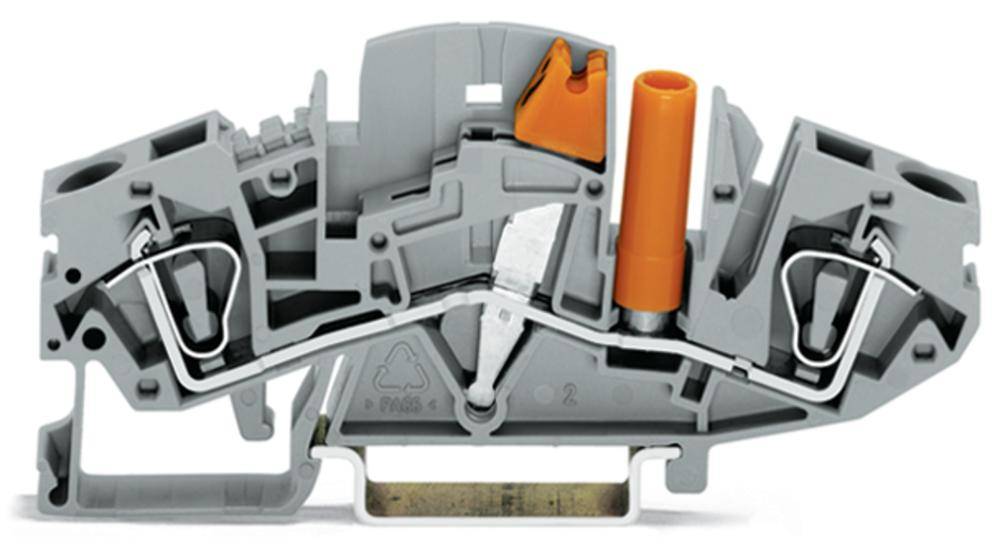

WAGO 282-811 N terminal 8 mm Pull spring Configuration: L Grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
N terminal
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
Number (Package size 20 pc(s))
Total (€ 6.09 / piece)
€ 121.84
plus VAT.
Highlights & Details
2-conductor transverse switching terminal block
- 282-811
- Industrial packaging with 20 pieces
Technical specifications
- 2-C F.E. TRANSVERSE DISC.T.BL. 4SQMM
- Product type
N terminal
- Features
+ test option
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Min. stripping length
12 mm
- Stripping length (max.)
13 mm
- Manufacturer part #
282-811
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
282-811

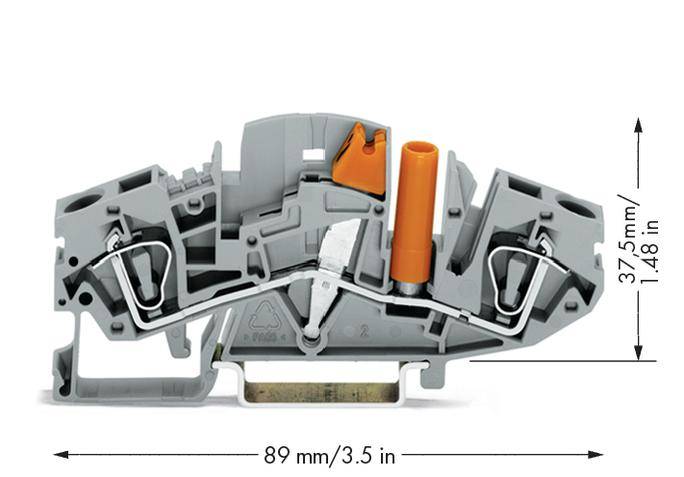

- Dim
(W x H) 8 mm x 37.50 mm
- Width
8 mm
- Height
37.50 mm
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 536876 WAGO 282-811 N terminal 8 mm Pull spring Configuration: L Grey 20 pc(s)
User & Safety Instructions
User & Safety Instructions 536876 WAGO 282-811 N terminal 8 mm Pull spring Configuration: L Grey 20 pc(s)
Description
With touch-safe test socket for testing plug Ø 4 mm gray.
