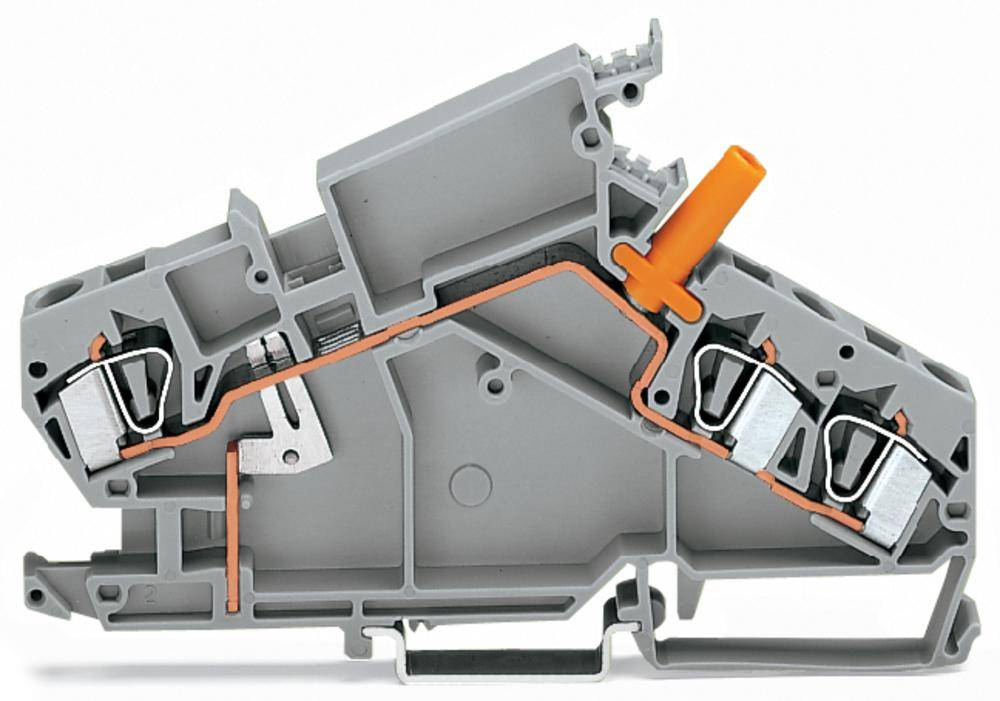

WAGO 282-865 Continuity 8 mm Pull spring Configuration: L Grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
6 mm²
Cross section (inflexible) (max.)
6 mm²
Nominal current - rounded value
30 A
Datasheet (PDF)
Number (Package size 20 pc(s))
Total (€ 7.35 / piece)
€ 147.05
plus VAT.
14-day return policy included
Highlights & Details
Through terminal block
- 282-865
Technical specifications
- CT THROUGH TERMINAL
- Product type
Continuity
- Features
+ test option
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
6 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
6 mm²
- AWG (min.)
24
- AWG max.
10
- Clamp width
8 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
500 V
- Min. stripping length
12 mm
- Stripping length (max.)
13 mm
- Manufacturer part #
282-865
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
282-865

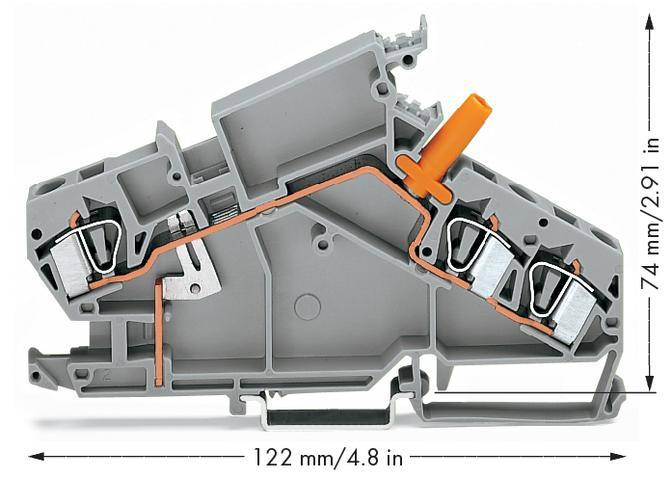

- Dim
(W x H) 8 mm x 74 mm
- Width
8 mm
- Height
74 mm
- Contamination level
3
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 536879 WAGO 282-865 Continuity 8 mm Pull spring Configuration: L Grey 20 pc(s)
User & Safety Instructions
User & Safety Instructions 536879 WAGO 282-865 Continuity 8 mm Pull spring Configuration: L Grey 20 pc(s)
Description
With touch-safe test socket for testing plug Ø 4 mm, for example, for current transformer circuits, gray.
