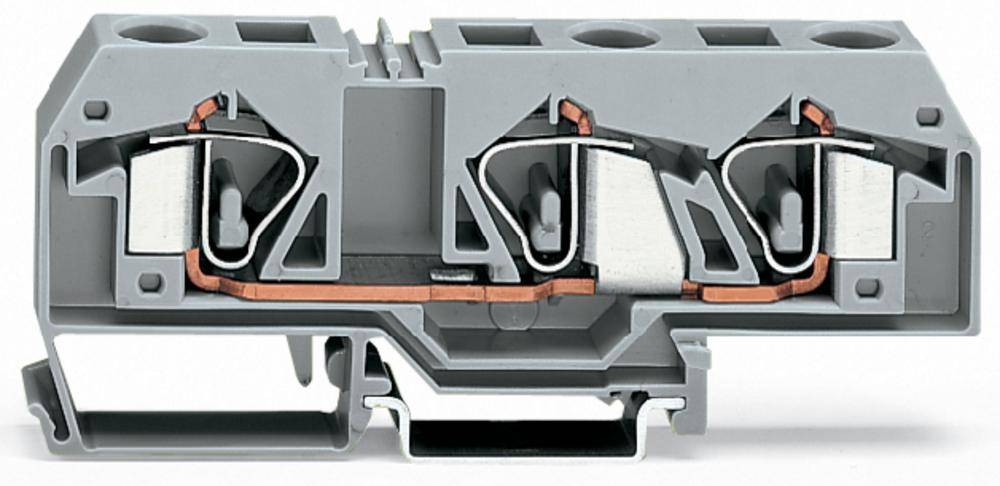

WAGO 283-998 Continuity 12 mm Pull spring Configuration: L Grey 20 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
68 A
Datasheet (PDF)
Number (Package size 20 pc(s))
Total (€ 4.83 / piece)
€ 96.63
plus VAT.
Highlights & Details
3-conductor Ex e II through terminal block
- 283-998
Technical specifications
- 3-COND.F.E.EExeII THR.T.BL.ASYM.L.GR
- Product type
Continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
24
- AWG max.
6
- Clamp width
12 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Grey
- Nominal current
68 A
- Nominal current - rounded value
68 A
- Nominal voltage
550 V
- Min. stripping length
16 mm
- Stripping length (max.)
17 mm
- Manufacturer part #
283-998
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
283-998
- Dim
(W x H) 12 mm x 37.50 mm
- Width
12 mm
- Height
37.50 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 537037 WAGO 283-998 Continuity 12 mm Pull spring Configuration: L Grey 20 pc(s)
User & Safety Instructions
User & Safety Instructions 537037 WAGO 283-998 Continuity 12 mm Pull spring Configuration: L Grey 20 pc(s)
Description
Complies with ATEX Ex-e II, light gray.
