WAGO 284-101 Continuity 10 mm Pull spring Configuration: L Grey 50 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Nominal current - rounded value
57 A
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 2.44 / piece)
€ 121.84
plus VAT.
Highlights & Details
2-conductor through terminal block
- 284-101
- Industrial packaging, pack of 50
Technical specifications
- THROUGH TERM.BLOCK 10 SQMM GREY
- Product type
Continuity
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
24
- AWG max.
8
- Clamp width
10 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
57 A
- Nominal current - rounded value
57 A
- Nominal voltage
800 V
- Min. stripping length
12 mm
- Stripping length (max.)
13 mm
- Manufacturer part #
284-101
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
284-101

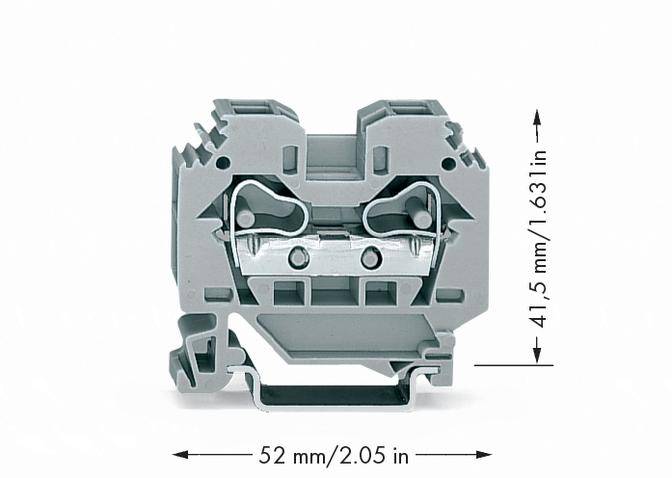

- Dim
(W x H) 10 mm x 41.50 mm
- Width
10 mm
- Height
41.50 mm
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 537043 WAGO 284-101 Continuity 10 mm Pull spring Configuration: L Grey 50 pc(s)
User & Safety Instructions
User & Safety Instructions 537043 WAGO 284-101 Continuity 10 mm Pull spring Configuration: L Grey 50 pc(s)
Description
Grey.
