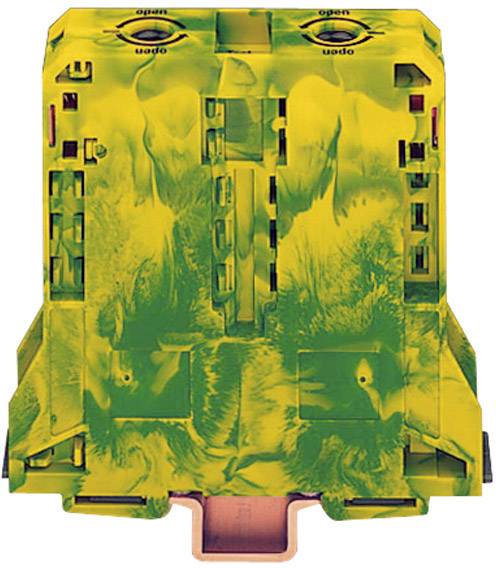

WAGO 285-197 PG terminal 25 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
PG terminal
Connection
Pull spring
Cross section (flexible) (max.)
95 mm²
Cross section (inflexible) (max.)
95 mm²
Nominal current - rounded value
232 A
Datasheet (PDF)
Number
Total (€ 43.69 / piece)
€ 43.69
plus VAT.
Only 9 Piece(s) available
Highlights & Details
2-conductor-through term
- For large cross-sections
Technical specifications
- Product type
PG terminal
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
95 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
95 mm²
- AWG (min.)
4
- AWG max.
4
- Clamp width
25 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Green
Yellow
- Nominal current
232 A
- Nominal current - rounded value
232 A
- Min. stripping length
35 mm
- Stripping length (max.)
36 mm
- Manufacturer part #
285-197
- Content
1 pc(s)
- Type
285-197
- Width
25 mm
- Weight
1556.00
- Nominal current (details)
232 A
- Cross section
25 - 95 mm²
- Connection
-
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 730619 WAGO 285-197 PG terminal 25 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Datasheet 730619 WAGO 285-197 PG terminal 25 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
User & Safety Instructions
User & Safety Instructions 730619 WAGO 285-197 PG terminal 25 mm Pull spring Configuration: Terre Green, Yellow 1 pc(s)
Description
The possibility to lock this clamp in the Open-Position simplifies the wiring of bigger cross-section.
