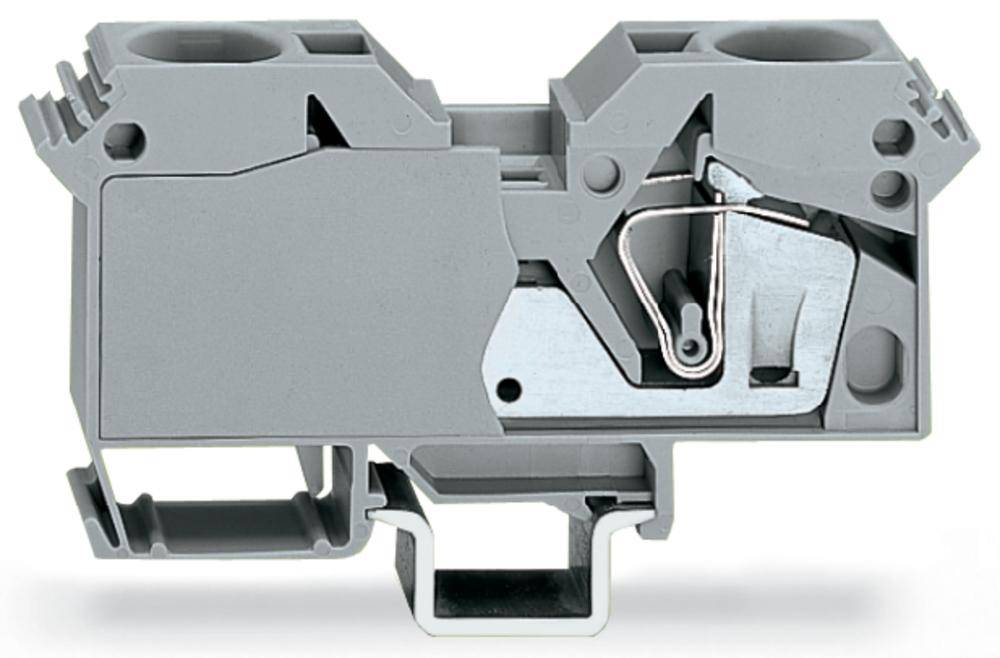

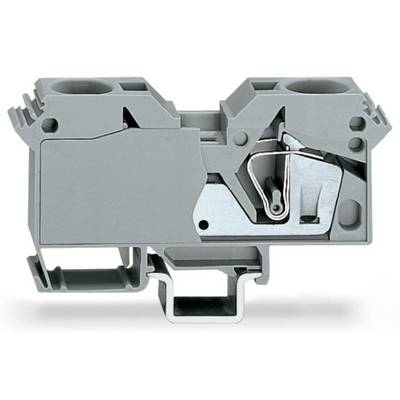

WAGO 285-601 Continuity 16 mm Pull spring Configuration: L Grey 15 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
35 mm²
Cross section (inflexible) (max.)
35 mm²
Nominal current - rounded value
125 A
Datasheet (PDF)
Number (Package size 15 pc(s))
Total (€ 22.91 / piece)
€ 343.70
plus VAT.
Highlights & Details
2-conductor through terminal block
- 285-601
- Industrial packaging with 15 pieces
Technical specifications
- THROUGH TERMINAL BLOCK 35 SQMM GREY
- Product type
Continuity
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
6 mm²
- Cross section (flexible) (max.)
35 mm²
- Cross section (inflexible) (min.)
6 mm²
- Cross section (inflexible) (max.)
35 mm²
- AWG (min.)
10
- AWG max.
2
- Clamp width
16 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
125 A
- Nominal current - rounded value
125 A
- Nominal voltage
800 V
- Min. stripping length
16 mm
- Stripping length (max.)
23 mm
- Manufacturer part #
285-601
- Content
15 pc(s)
- Industrial packaging
Yes
- Type
285-601

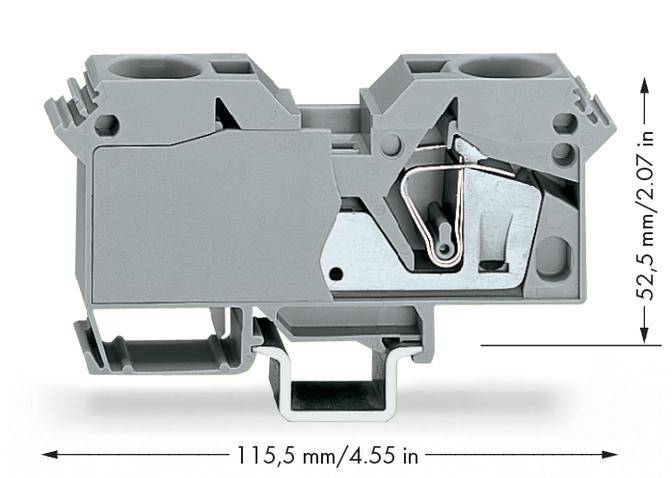

- Dim
(W x H) 16 mm x 52.50 mm
- Width
16 mm
- Height
52.50 mm
- Contamination level
3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 537197 WAGO 285-601 Continuity 16 mm Pull spring Configuration: L Grey 15 pc(s)
User & Safety Instructions
User & Safety Instructions 537197 WAGO 285-601 Continuity 16 mm Pull spring Configuration: L Grey 15 pc(s)
Description
Grey.
