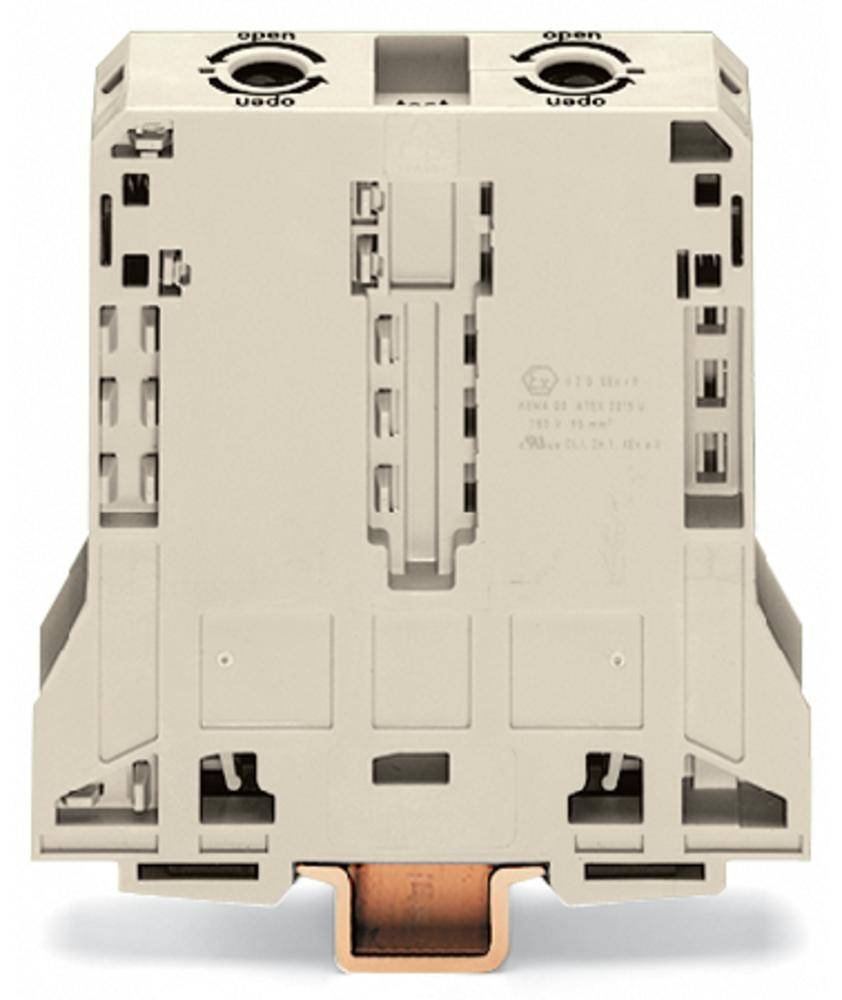

WAGO 285-995 Continuity 25 mm Pull spring Configuration: L Grey 5 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
95 mm²
Cross section (inflexible) (max.)
95 mm²
Nominal current - rounded value
211 A
Datasheet (PDF)
Number (Package size 5 pc(s))
Total (€ 26.89 / piece)
€ 134.45
plus VAT.
14-day return policy included
Highlights & Details
2-conductor Ex e II through terminal block
- 285-995
- Industrial packaging with 5 pieces
Technical specifications
- 2-L-DURCHGANGSKL.95 QMM LICHTGRAU
- Product type
Continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
25 mm²
- Cross section (flexible) (max.)
95 mm²
- Cross section (inflexible) (min.)
25 mm²
- Cross section (inflexible) (max.)
95 mm²
- AWG (min.)
4
- AWG max.
4
- Clamp width
25 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
211 A
- Nominal current - rounded value
211 A
- Nominal voltage
750 V
- Stripping length (max.)
35 mm
- Manufacturer part #
285-995
- Content
5 pc(s)
- Industrial packaging
Yes
- Type
285-995
- Dim
(W x H) 25 mm x 101 mm
- Width
25 mm
- Height
101 mm
Documents & Downloads
Datasheet
Datasheet 537223 WAGO 285-995 Continuity 25 mm Pull spring Configuration: L Grey 5 pc(s)
User & Safety Instructions
User & Safety Instructions 537223 WAGO 285-995 Continuity 25 mm Pull spring Configuration: L Grey 5 pc(s)
Description
Complies with ATEX Ex-e II, light gray.
