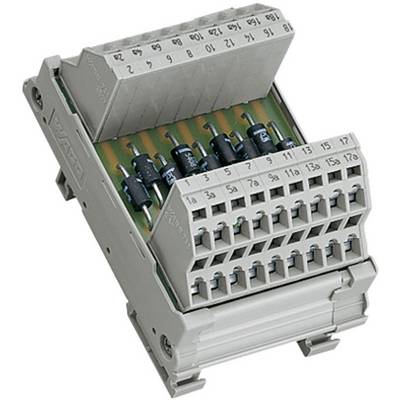

WAGO 289-105 Diode Gate Module, Rail Mountable 0.08 - 2.5 mm²
EAN:
Part number:
Item no:
Product type
Diode logic gate module
Connection
Pull spring
Dim
(W x H x D) 51 x 48 x 85 mm
Operating current
3 A
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 68.90 / piece)
€ 68.90
plus VAT.
Only 2 Piece(s) available
WAGO 289-105 Diode Gate Module, Rail Mountable 0.08 - 2.5 mm²
Technical specifications
- Product type
Diode logic gate module
- Connection
Pull spring
- Dim
(W x H x D) 51 x 48 x 85 mm
- Operating current
3 A
- Content
1 pc(s)
- Width
51 mm
- Height
48 mm
- max. cross section
2.5 mm²
- Min. cross section
0.08 mm²
- Series
CAGE CLAMP® Serie 236
- Max. temperature
+40 °C
- Min. temperature
-25 °C
- Connection
Series 236 CAGE CLAMP®
- Depth
85 mm
- Connector cross section
0.08 - 2.5 mm²
- Temperature range
-25 - + 40 °C
- Operating voltage
250 V (AC/DC)
Documents & Downloads
Datasheet
Datasheet 734556 WAGO 289-105 Diode Gate Module, Rail Mountable 0.08 - 2.5 mm²
User & Safety Instructions
User & Safety Instructions 734556 WAGO 289-105 Diode Gate Module, Rail Mountable 0.08 - 2.5 mm²
Description
Open diode gate with nine 1 N 5408 diodes, which can be wired individually, two connections per diode side, mounting base for TS 35.
