An electrical connection board with two rows of numbered terminals (1-24) and an upper connector with multiple pins.

An electrical connection board with two rows of numbered terminals (1-24) and an upper connector with multiple pins.

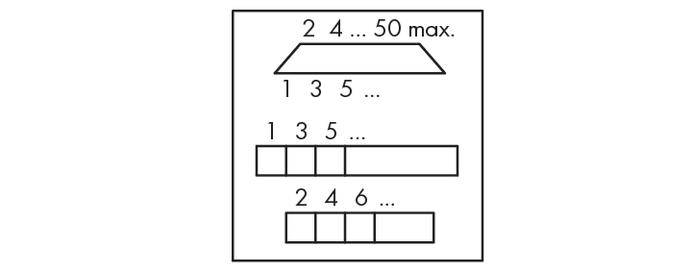

'Figure shows a sequence: 2, 4, up to 50 max; Number series 1, 3, 5; Empty boxes for numbers; Number series 2, 4, 6.'

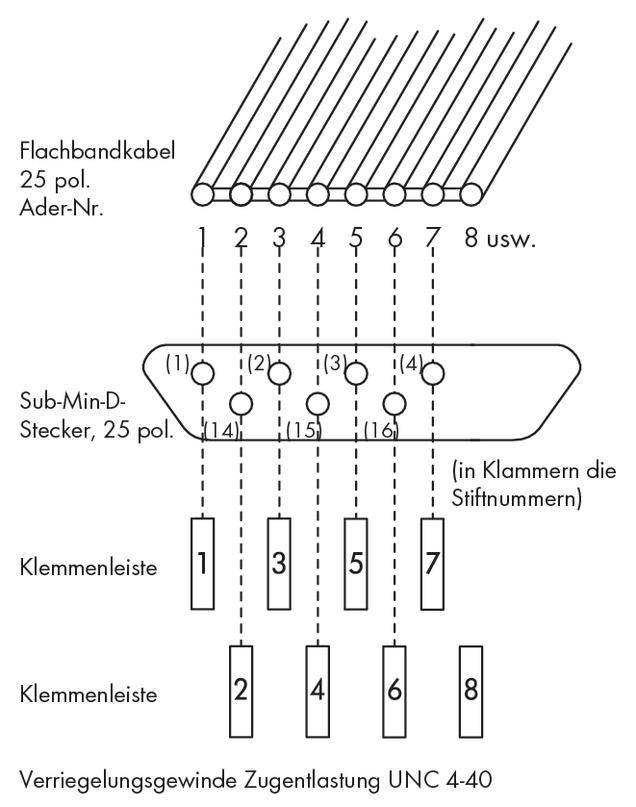

'Diagram of a flat ribbon cable with a 25-pin Sub-Miniature D-type connector and terminal strips, showing wire and pin numbering.'

1/3

Product type

Transfer module

Total no. of pins

50

Connection

Pull spring

Dim

(W x H x D) 157 x 19 x 63.5 mm

Content

1 pc(s)

Datasheet (PDF)

WAGO

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 55.45 / piece)

€ 55.45

plus VAT.

14-day return policy included

Report legal concerns

Technical specifications

JUNCTION MOD.SUB-D FEM.CONN.50 POLES

Product type: Transfer module

Total no. of pins: 50

Connection: Pull spring

Dim: (W x H x D) 157 x 19 x 63.5 mm

Content: 1 pc(s)

Suitable for: Mating connector (Cut & Clip)

Number of pins: 50

Width: 157 mm

Height: 19 mm

Series: CAGE CLAMP® Serie 236

Features: + D-SUB receptacle
vertical orientation

Depth: 63.5 mm

Documents & Downloads

Datasheet

Datasheet 537236 WAGO 289-454 Interface module Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 537236 WAGO 289-454 Interface module Content: 1 pc(s)

Description

With sub-mini D female header, 50-pin for mating plug with IDC connection, vertical plug-in direction.

This text is machine translated.
