WAGO 289-459 Interface module Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
50
Connection
Pull spring
Dim
(W x H x D) 157 x 19 x 63.5 mm
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
14-day return policy included
Technical specifications
- JUNCTION MOD.SUB-D FEM.CONN.50 POLES
- Product type
Transfer module
- Total no. of pins
50
- Connection
Pull spring
- Dim
(W x H x D) 157 x 19 x 63.5 mm
- Content
1 pc(s)
- Suitable for
Mating connector (solder lugs)
- Number of pins
50
- Width
157 mm
- Height
19 mm
- Series
CAGE CLAMP® Serie 236
- Features
+ D-SUB receptacle
vertical orientation
- Depth
63.5 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 537238 WAGO 289-459 Interface module Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 537238 WAGO 289-459 Interface module Content: 1 pc(s)
Description

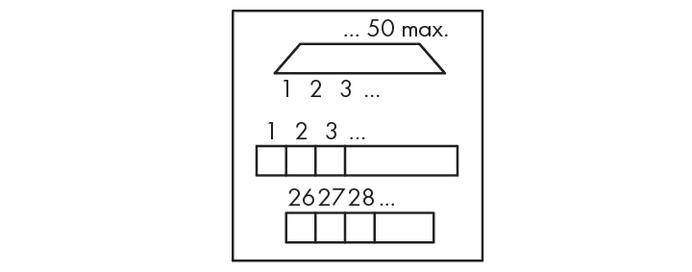

With sub-mini D female header, 50-pin for mating plug with soldered joint, vertical plug-in direction.
