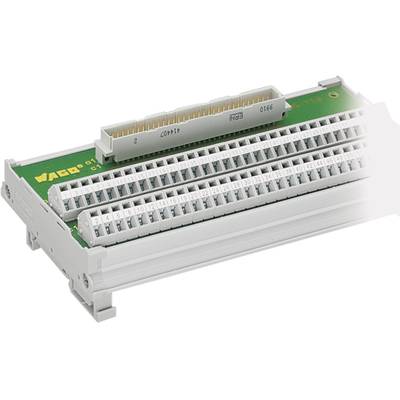

WAGO 289-526 Interface module for DIN 41 612 connectors Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
64
Connection
Pull spring
Dim
(W x H x D) 171 x 34 x 85 mm
Operating current
1 A
Datasheet (PDF)
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
14-day return policy included
Technical specifications
- Product type
Transfer module
- Total no. of pins
64
- Connection
Pull spring
- Dim
(W x H x D) 171 x 34 x 85 mm
- Operating current
1 A
- Content
1 pc(s)
- Suitable for
Edge connector (Cut & Clip, solder lugs)
- Number of pins
64
- Width
171 mm
- Height
34 mm
- max. cross section
2.5 mm²
- Min. cross section
0.08 mm²
- Series
CAGE CLAMP® Serie 236
- Features
+ edge connector
upright orientation
Type C
TS 35 socket
- Depth
85 mm
- Operating voltage
125 V AC/DC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 736835 WAGO 289-526 Interface module for DIN 41 612 connectors Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 736835 WAGO 289-526 Interface module for DIN 41 612 connectors Content: 1 pc(s)
Description
With multipoint connector, build type C, vertical mating direction, for female multipoint connector with IDC terminal or solder connection, mounting base for TS 35.
