WAGO 289-549 Interface module Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
50
Connection
Pull spring
Dim
(W x H x D) 94 x 34 x 85 mm
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 130.25
-13 %
€ 113.44
plus VAT.
Technical specifications
- JUNCTION MOD.SUB-D-MALE CONN.50 POL.
- Product type
Transfer module
- Total no. of pins
50
- Connection
Pull spring
- Dim
(W x H x D) 94 x 34 x 85 mm
- Content
1 pc(s)
- Suitable for
Mating connector (solder lugs)
- Number of pins
50
- Width
94 mm
- Height
34 mm
- Series
CAGE CLAMP® Serie 236
- Features
+ D-SUB pin strip
vertical orientation
- Depth
85 mm
Documents & Downloads
Datasheet
Datasheet 537254 WAGO 289-549 Interface module Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 537254 WAGO 289-549 Interface module Content: 1 pc(s)
Description

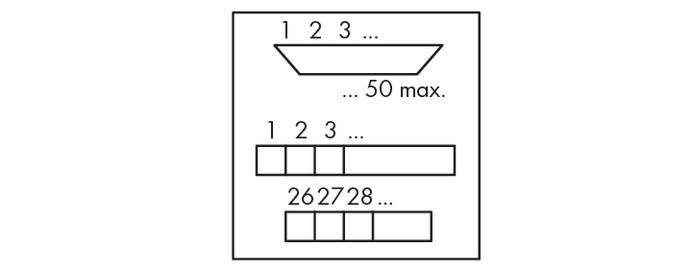

With female sub-mini D header, 50-pin for mating plug with solder connection, vertical plug-in direction.
