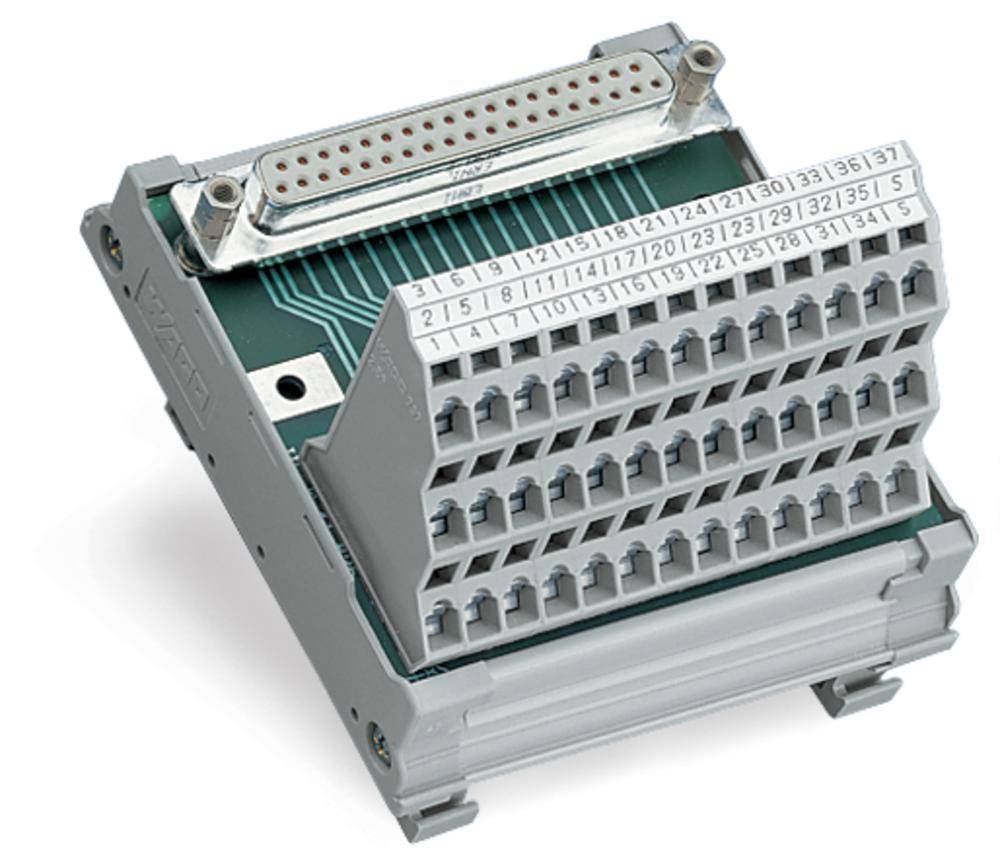

WAGO 289-623 Interface module Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transfer module
Total no. of pins
25
Connection
Pull spring
Dim
(W x H x D) 56 x 62 x 85 mm
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 82.34 / piece)
€ 82.34
plus VAT.
14-day return policy included
Technical specifications
- 25 WAY,FEMALE D-CONN TO PCB TERMS
- Product type
Transfer module
- Total no. of pins
25
- Connection
Pull spring
- Dim
(W x H x D) 56 x 62 x 85 mm
- Content
1 pc(s)
- Suitable for
Mating connector (solder lugs)
- Number of pins
25
- Width
56 mm
- Height
62 mm
- Series
CAGE CLAMP® Serie 737
- Features
+ D-SUB receptacle
vertical orientation
+ shielding connector
- Depth
85 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 537287 WAGO 289-623 Interface module Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 537287 WAGO 289-623 Interface module Content: 1 pc(s)
Description
With sub-mini D female header, 25-pin for mating plug with soldered joint, with shield connection, vertical plug-in direction.
