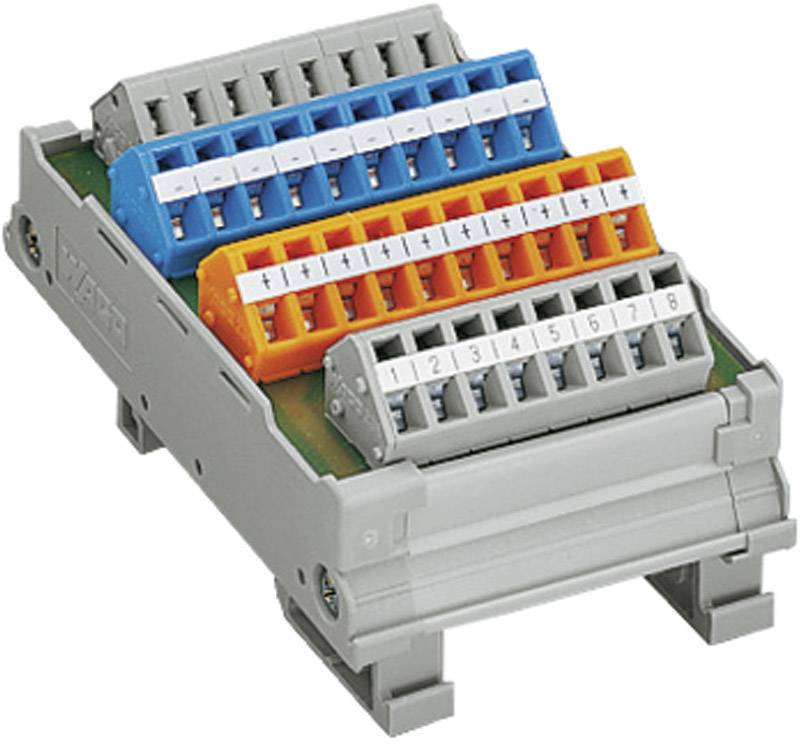

WAGO 289-664 Connection module Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Connector module
Connection
Pull spring
Dim
(W x H x D) 56 x 34 x 85 mm
Operating current
8 A
Content
1 pc(s)
Datasheet (PDF)
Number
Total (€ 40.33 / piece)
€ 40.33
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Connection module
- Mounting base for TS 35
- 289-664
Technical specifications
- Product type
Connector module
- Connection
Pull spring
- Dim
(W x H x D) 56 x 34 x 85 mm
- Operating current
8 A
- Content
1 pc(s)
- Suitable for
8x 3-wire int
- Width
56 mm
- Height
34 mm
- max. cross section
2.5 mm²
- Min. cross section
0.08 mm²
- Series
CAGE CLAMP® Serie 236
- Depth
85 mm
- Operating voltage
125 V AC/DC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 737894 WAGO 289-664 Connection module Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 737894 WAGO 289-664 Connection module Content: 1 pc(s)
Description
For 8 x 3-wire int.
