WAGO 294-4045 WAGO GmbH & Co. KG Mains connector flexible: - fixed: 0.5-1.5 mm² Number of pins: 5 250 pc(s) White
EAN:
Part number:
Item no:
Nominal current - rounded value
24 A
Series
294
Cross section (inflexible) (max.)
1.5 mm²
Cross section (inflexible) (min.)
0.5 mm²
Number of pins
5
Datasheet (PDF)
Number (Package size 250 pc(s))
Total (€ 1.46 / piece)
€
Highlights & Details
Power supply connector
- 294-4045
- Industrial packaging with 250 pieces
Technical specifications
- LAK17 5P oRF oPE 5 4 3 2 1
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Content
250 pc(s)
- Manufacturer part #
294-4045
- Factory colour
White

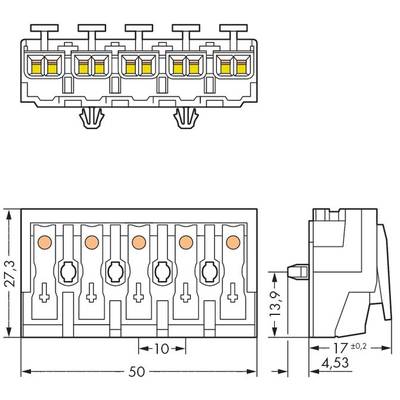

- Width
50 mm
- Industrial packaging
Yes
- Connector clip features
Latch
Standard label
- Connection
Pull spring
- Series
294
- Cross section (inflexible) (max.)
1.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Number of pins
5
- Stripping length
8 - 9 mm
18 - 14
- Contact material
CrNi
- Temperature range
RTI 125 °C
- Product type
Mains connector
Documents & Downloads
Datasheet
Datasheet 537419 WAGO 294-4045 WAGO GmbH & Co. KG Mains connector flexible: - fixed: 0.5-1.5 mm² Number of pins: 5 250 pc(s) White
User & Safety Instructions
User & Safety Instructions 537419 WAGO 294-4045 WAGO GmbH & Co. KG Mains connector flexible: - fixed: 0.5-1.5 mm² Number of pins: 5 250 pc(s) White
Description
Without PE contact, without latch feet 5-4-3-2-1, 5-pin, white.
