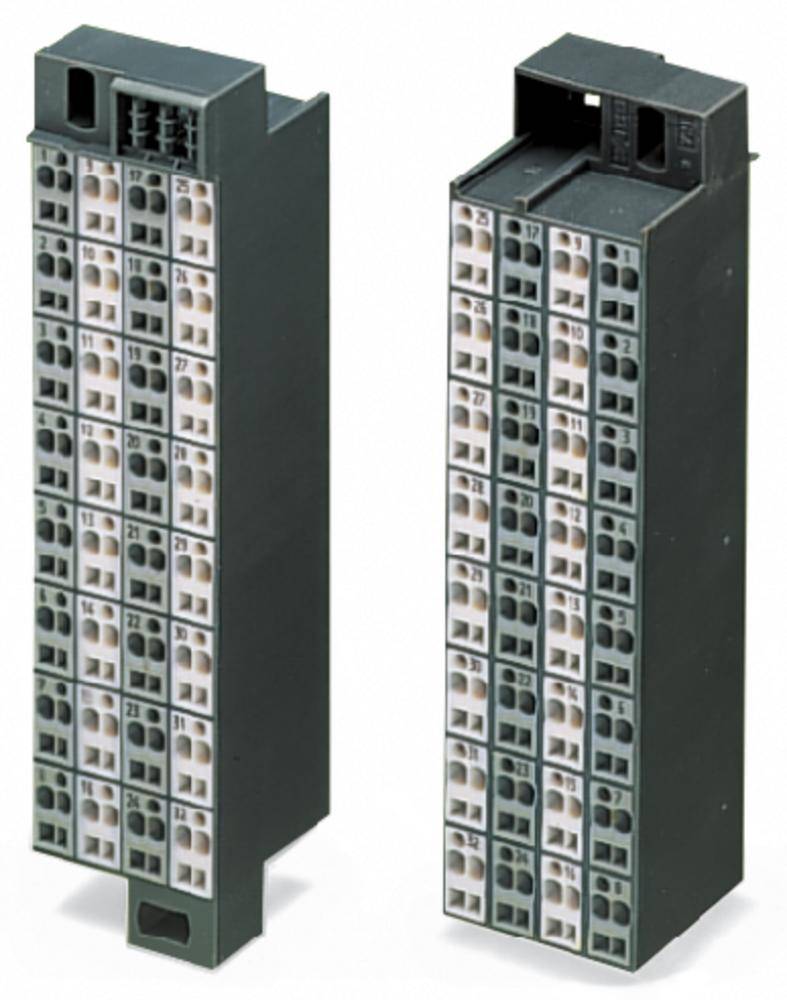

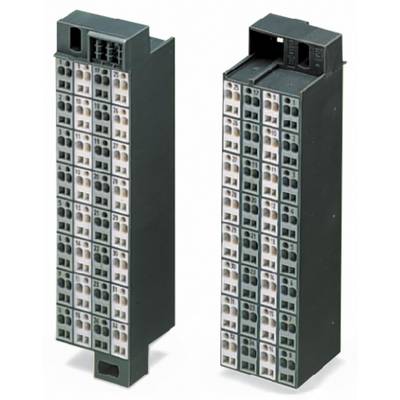

WAGO 726-322 Shunt terminal array Pull spring Grey 24 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt terminal array
Connection
Pull spring
Cross section (flexible) (max.)
1.50 mm²
Cross section (inflexible) (max.)
1.50 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Number (Package size 24 pc(s))
Total (€ 63.90 / piece)
€ 1,533.61
plus VAT.
14-day return policy included
Highlights & Details
Matrix patchboard
- 726-322
- Industrial packaging with 24 pieces
Technical specifications
- MATR.PATCHB.32P.(4X1,5)G/W33-64V.NA.
- Product type
Shunt terminal array
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
1.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
1.50 mm²
- AWG (min.)
28
- AWG max.
16
- Number of pins
32
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
726-322
- Content
24 pc(s)
- Industrial packaging
Yes
- Type
726-322
- Dim
(W x H) 34.60 mm x 132 mm
- Width
34.60 mm
- Height
132 mm
Documents & Downloads
Datasheet
Datasheet 542223 WAGO 726-322 Shunt terminal array Pull spring Grey 24 pc(s)
User & Safety Instructions
User & Safety Instructions 542223 WAGO 726-322 Shunt terminal array Pull spring Grey 24 pc(s)
Description
Imprint 33-64, chamber colors gray/white chamber marking on the pages 1 and 2 in a vertical line, for 19" racks, slim design, 32-pin, dark gray.
