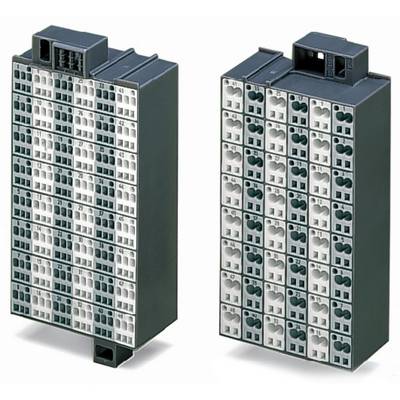

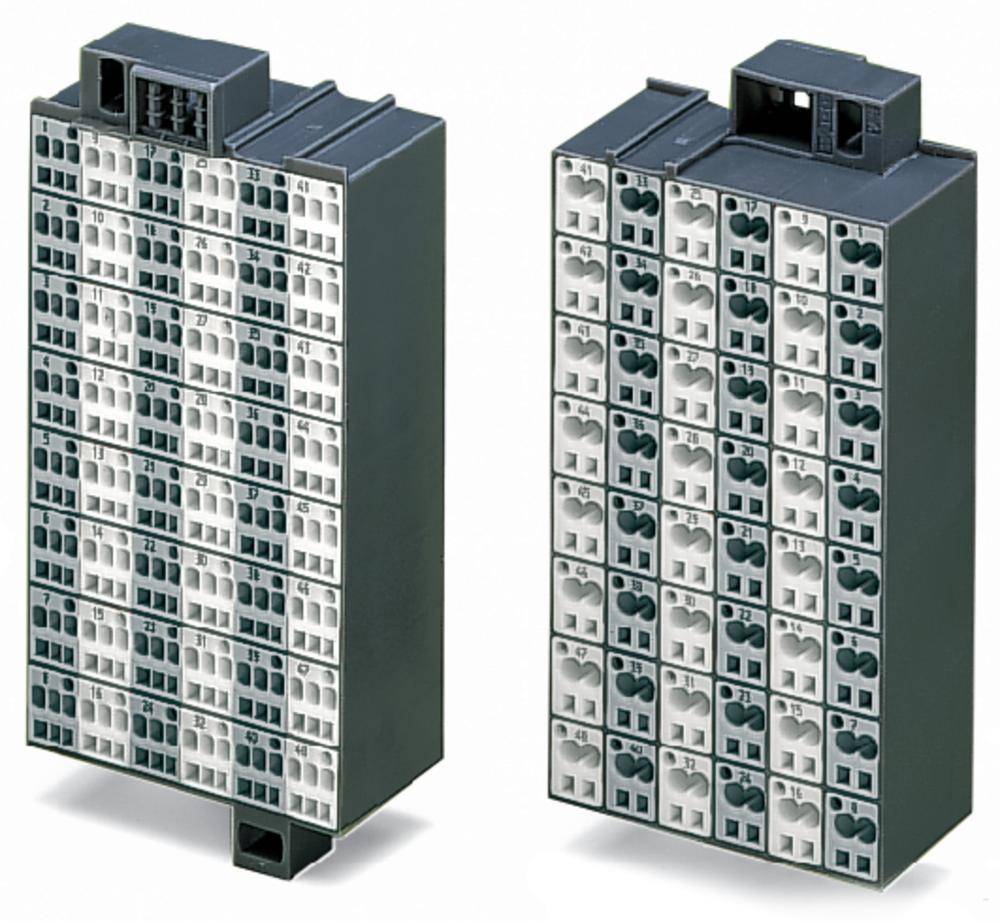

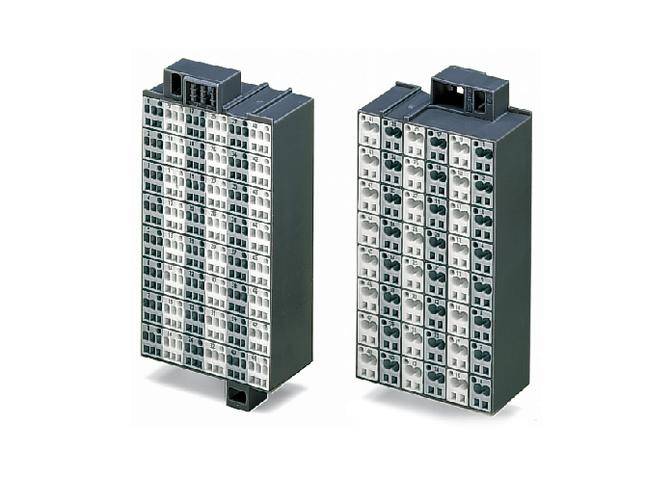

WAGO 726-521 Shunt terminal array Pull spring Grey 10 pc(s)
EAN:
Part number:
Item no:
Product type
Shunt terminal array
Connection
Pull spring
Cross section (flexible) (max.)
2.50 mm²
Cross section (inflexible) (max.)
2.50 mm²
Nominal current - rounded value
10 A
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 107.14 / piece)
€ 1,071.43
plus VAT.
14-day return policy included
Highlights & Details
Matrix patchboard
- 726-521
- Industrial packaging, pack of 10
Technical specifications
- MATR.PATCHB.48P.(3X1,5/2X2,5)G/W1-48
- Product type
Shunt terminal array
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
14
- Number of pins
48
- Factory colour
Grey
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Min. stripping length
8 mm
- Stripping length (max.)
10 mm
- Manufacturer part #
726-521
- Content
10 pc(s)
- Industrial packaging
Yes
- Type
726-521
- Dim
(W x H) 65.3 mm x 132 mm
- Width
65.3 mm
- Height
132 mm
Documents & Downloads
Datasheet
Datasheet 542265 WAGO 726-521 Shunt terminal array Pull spring Grey 10 pc(s)
User & Safety Instructions
User & Safety Instructions 542265 WAGO 726-521 Shunt terminal array Pull spring Grey 10 pc(s)
Description
Imprint 1-48, chamber colors gray/white chamber marking on the pages 1 and 2 in a vertical line, 48-pin, dark gray.
