Buy WAGO 742-168 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 100 pc(s)

Orange terminal block with four connection points and metal contacts. Two protruding wires are visible at the left edge.

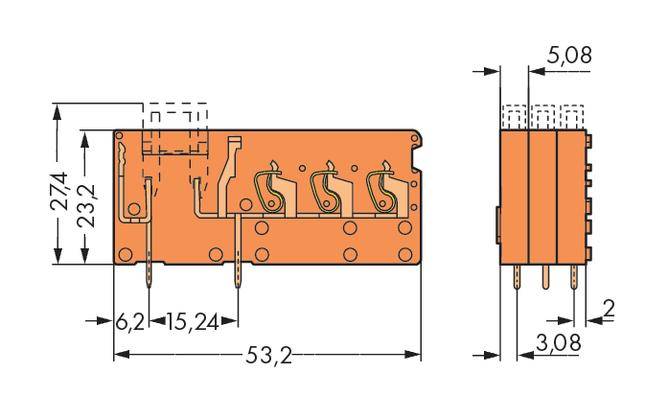

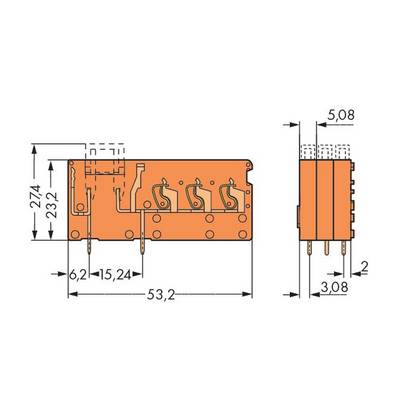

Technical drawing of an electrical relay with dimensions: Height 27.4 mm, Width 53.2 mm, Depth 15.24 mm. Front and side view.

1/2

Product type

Spring-loaded terminal

5.08 mm

Pins per row

Number of pins

Connection

Spring-loaded terminal

Datasheet (PDF)

Dispatches on Mon, 12 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 3.35 / piece)

€ 335.29

plus VAT.

Report legal concerns

Technical specifications

3-L-GDS-SICHERUNGSKLEMME ORANGE

Type: 742-168

Product type: Spring-loaded terminal

Features: + CAGE CLAMP®

CS: 5.08 mm

No. of rows: 1

Pins per row: 1

Number of pins: 1

Series: 742

Min. stripping length: 8 mm

Stripping length (max.): 7 mm

Connection: Spring-loaded terminal
Print

Cross section (flexible) (min.): 0.08 mm²

Cross section (inflexible) (min.): 0.08 mm²

Cross section (flexible) (max.): 2.50 mm²

Cross section (inflexible) (max.): 2.50 mm²

AWG (min.): 28

Connector orientation: Perpendicular (to the PCB)

AWG max.: 12

Contact material: Cathode copper, tin plated

Factory colour: Orange

Wire protection: Yes

Manufacturer part #: 742-168

Industrial packaging: Yes

Content: 100 pc(s)

Nominal voltage: 320 V

Width: 53.20 mm

Height: 27.20 mm

Length: 5.08 mm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Type

Pins per row

Connection

Number of pins

Connector orientation

Product type

No. of rows

WAGO 742-168 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 100 pc(s)

Item no:545320

This article

742-168

Spring-loaded terminalPrint

Perpendicular (to the PCB)

Spring-loaded terminal

5.08 mm

WAGO 742-106 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 384 pc(s)

Item no:545295

742-106

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5.08 mm

WAGO 742-116 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 300 pc(s)

Item no:545296

742-116

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5.08 mm

WAGO 742-121 Spring-loaded terminal 2.50 mm² Number of pins 1 Grey 300 pc(s)

Item no:545297

742-121

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5 mm

WAGO 742-124 Spring-loaded terminal 2.50 mm² Number of pins 1 Blue 300 pc(s)

Item no:545298

742-124

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5 mm

WAGO 742-128 Spring-loaded terminal 2.50 mm² Number of pins 1 Green, Yellow 300 pc(s)

Item no:545303

742-128

Spring-loaded terminalPrint

At an angle (to the PCB)

Spring-loaded terminal

5 mm

WAGO 742-151 Spring-loaded terminal 2.50 mm² Number of pins 1 Grey 200 pc(s)

Item no:545308

742-151

Spring-loaded terminalPrint

Perpendicular (to the PCB)

Spring-loaded terminal

5 mm

WAGO 742-156 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 200 pc(s)

Item no:545311

742-156

Spring-loaded terminalPrint

Perpendicular (to the PCB)

Spring-loaded terminal

5.08 mm

WAGO 742-161 Spring-loaded terminal 2.50 mm² Number of pins 1 Grey 200 pc(s)

Item no:545312

742-161

Spring-loaded terminalPrint

Perpendicular (to the PCB)

Spring-loaded terminal

5 mm

WAGO 742-163 Spring-loaded terminal 2.50 mm² Number of pins 1 Grey 100 pc(s)

Item no:545314

742-163

Spring-loaded terminalPrint

Perpendicular (to the PCB)

Spring-loaded terminal

5 mm

Documents & Downloads

Datasheet

Datasheet 545320 WAGO 742-168 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 100 pc(s)

User & Safety Instructions

User & Safety Instructions 545320 WAGO 742-168 Spring-loaded terminal 2.50 mm² Number of pins 1 Orange 100 pc(s)
