WAGO 750-402/025-000 PLC digital input module 750-402/025-000 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Technical specifications
- Color: light gray
- Cross-section 0.08 - 2.5 mm²
- AWG 28 - 14
- Stripping length: 8 - 9 mm
- Power consumption: 7.5 mA
- Installation type: TS 35
- Protection class: IP20
- Operating temperature: -20 to +60°C
- Product type
PLC digital input module
- Type
750-402/025-000
- No. of digital inputs (max.)
4
- Operating voltage
24 V DC
- Height
64 mm
- Length
100 mm
- Width
12 mm
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-20 °C
IP20
- Dim
(L x W x H) 100 x 12 x 64 mm
- Manufacturer part #
750-402/025-000
- Weight
50 g
- Factory colour
Light grey
- Mounting type
DIN rail
- Inputs / outputs
Inputs: 4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 191561 WAGO 750-402/025-000 PLC digital input module 750-402/025-000 1 pc(s)
User & Safety Instructions
User & Safety Instructions 191561 WAGO 750-402/025-000 PLC digital input module 750-402/025-000 1 pc(s)
Description

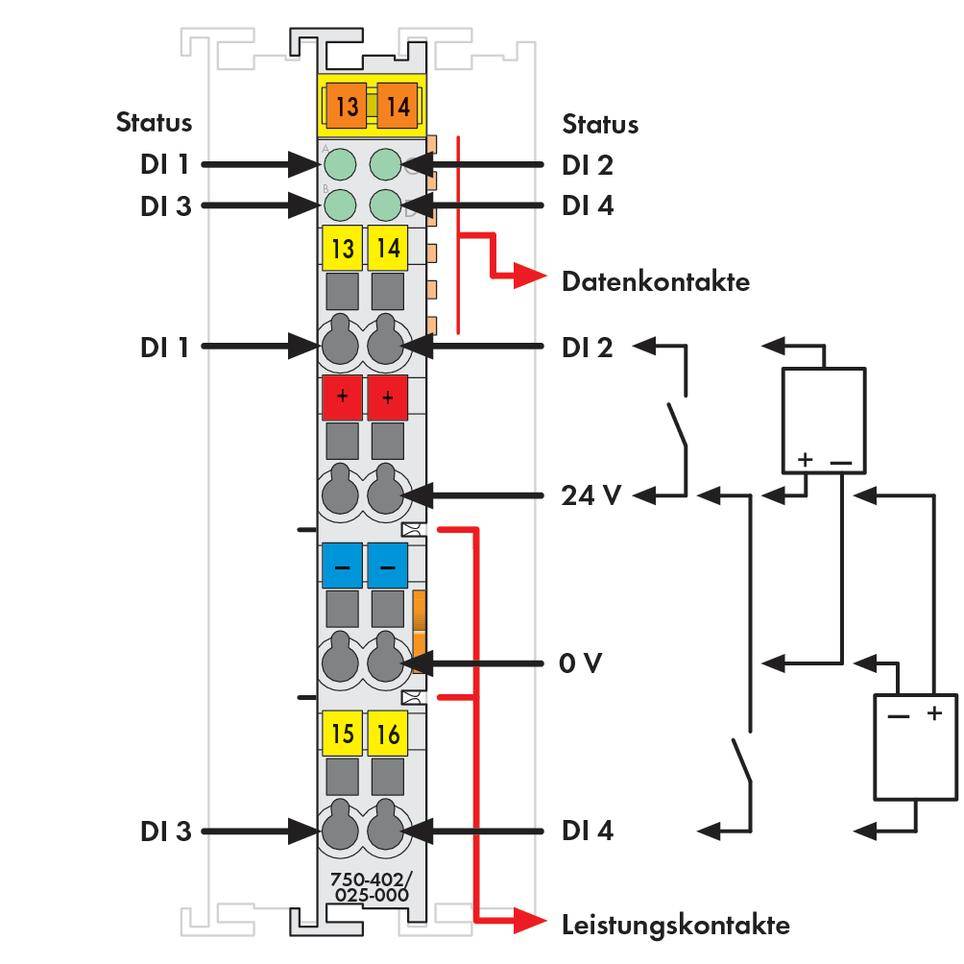

24 V DC, EXT3,0 ms, positive switch, 2 to 3-conductor connection, light gray.
