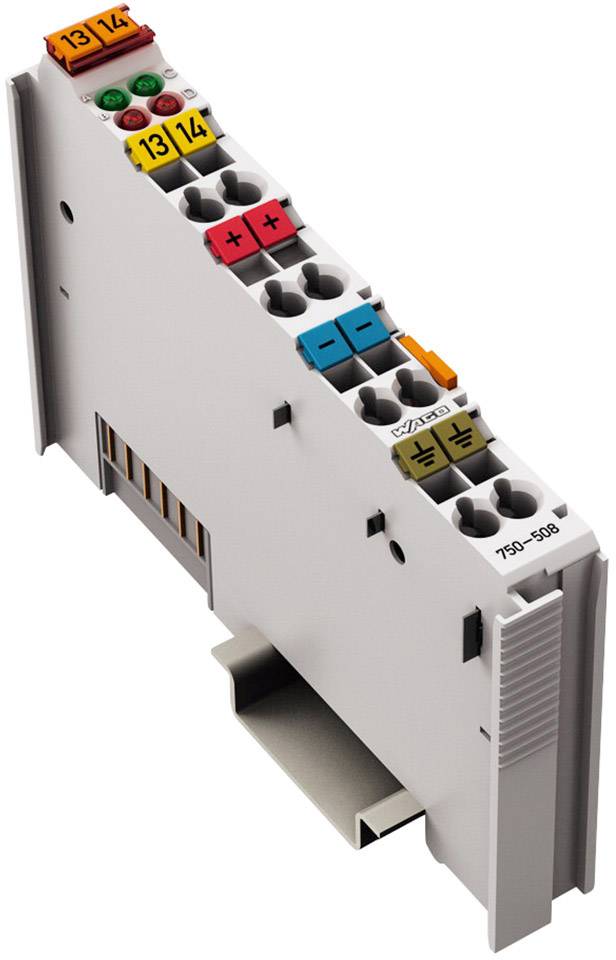

WAGO 750-508 PLC digital output module 750-508 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PLC digital output module
- Type
750-508
- No. of outputs (max.)
2
- Operating voltage
24 V DC
- Height
64 mm
- Length
100 mm
- Width
12 mm
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
IP20
- Dim
(L x W x H) 100 x 12 x 64 mm
- Manufacturer part #
750-508
- Weight
47.827 g
- Factory colour
Light grey
- Mounting type
DIN rail
12
100 mm
69.8 mm
FALSE
DC
FALSE
0
0
0
0
0
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
Spring clamp connection
TRUE
ATEX gas-ex-protection, Cat. 3G
ATEX dust-ex-protection, Cat. 3D
FALSE
FALSE
IP20
FALSE
FALSE
0
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
FALSE
24-24 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1923962 WAGO 750-508 PLC digital output module 750-508 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1923962 WAGO 750-508 PLC digital output module 750-508 1 pc(s)
Description
Wago 750-508. Number of Channels: 2 channels, decoupling: 0.5 kV. Signal discovery: output, voltage 24V, dimensions (wxdxh): 12 x 100 x 69.8 mm
