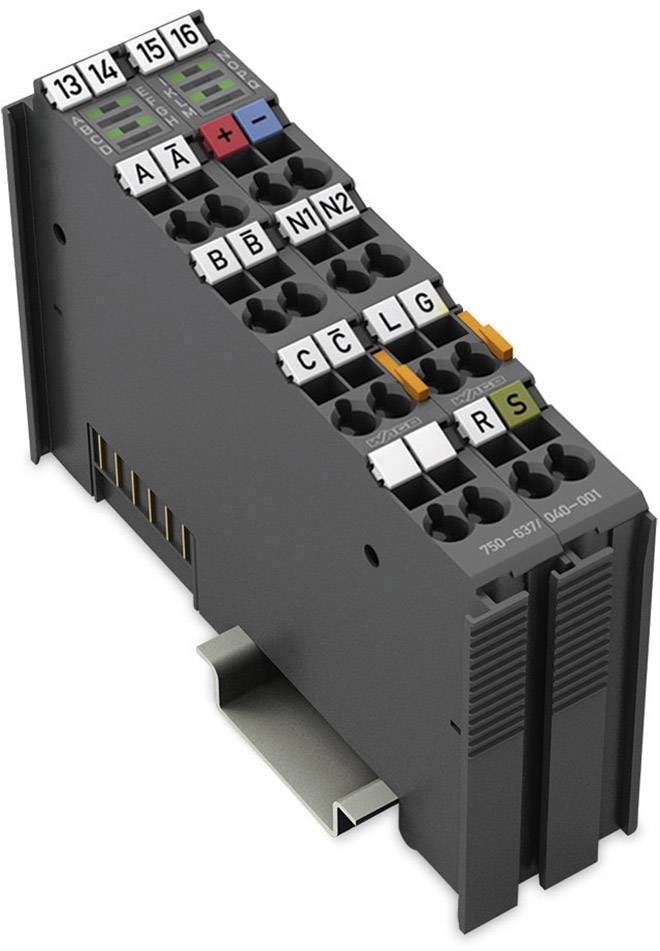

WAGO 750-637/040-001 PLC incremental encoder interface 750-637/040-001 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PLC incremental encoder interface
- Type
750-637/040-001
- Operating voltage
24 V DC
- Height
67.8 mm
- Length
100 mm
- Width
24 mm
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-40 °C
IP20
- Dim
(L x W x H) 100 x 24 x 67.8 mm
- Manufacturer part #
750-637/040-001
- Factory colour
Dark grey
- Mounting type
DIN rail
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924065 WAGO 750-637/040-001 PLC incremental encoder interface 750-637/040-001 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1924065 WAGO 750-637/040-001 PLC incremental encoder interface 750-637/040-001 1 pc(s)
Description
The module provides an interface for any incremental encoder with different connections.
A counter with quadrature decoder as well as a latch for the zero pulse can be read from the controller and can be activated. You can control the counter. Depending on the operating mode, on a positive edge at the input "C" or "Latch" of the counter value in the latch register is copied and the counter is initialized.
The Speed (increments/ms) is automatically recorded and, as an alternative to the latch value can be transmitted to the control.
The input "gate" allows you to lock the meter. The input "REF" can be used, in order to activate the function of the zero mark "C".
Using the cam outputs (N1, N2) indicates the module, if the counter value is defined in the windows. The panes can be individually set.
The module will need to supply a voltage of 24 V DC. With the same voltage is also the 24 V encoder.
The Shield Connection is directly connected to the mounting rail.
The device is suitable for use under harsh environmental conditions:
· Strongly extended temperature range
· Higher voltage resistance and EMC resistance
· Higher vibration and shock resistance
This text is machine translated.
A counter with quadrature decoder as well as a latch for the zero pulse can be read from the controller and can be activated. You can control the counter. Depending on the operating mode, on a positive edge at the input "C" or "Latch" of the counter value in the latch register is copied and the counter is initialized.
The Speed (increments/ms) is automatically recorded and, as an alternative to the latch value can be transmitted to the control.
The input "gate" allows you to lock the meter. The input "REF" can be used, in order to activate the function of the zero mark "C".
Using the cam outputs (N1, N2) indicates the module, if the counter value is defined in the windows. The panes can be individually set.
The module will need to supply a voltage of 24 V DC. With the same voltage is also the 24 V encoder.
The Shield Connection is directly connected to the mounting rail.
The device is suitable for use under harsh environmental conditions:
· Strongly extended temperature range
· Higher voltage resistance and EMC resistance
· Higher vibration and shock resistance
This text is machine translated.
