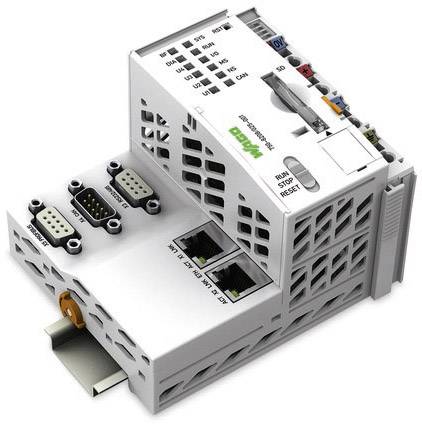

WAGO 750-8208/025-001 PLC controller 750-8208/025-001 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PLC controller
- Interfaces
Ethernet
Modbus RTU
RS 232
RS 485
MQTT
Remotely operated protocols
CANopen
Profibus
- Type
750-8208/025-001
- No. of outputs (max.)
64
- Height
71.9 mm
- Length
100 mm
- Width
112 mm
- Dim
(L x W x H) 100 x 112 x 71.9 mm
- Manufacturer part #
750-8208/025-001
- Transfer rate
10 / 100 MBit/s
- Factory colour
Light grey
- Mounting type
DIN rail
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924067 WAGO 750-8208/025-001 PLC controller 750-8208/025-001 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1924067 WAGO 750-8208/025-001 PLC controller 750-8208/025-001 1 pc(s)
Description
The Controller PFC 200 XTR impresses with its high execution speed and the parallel to use many different communication interfaces. It offers in all variants two Ethernet connections and, depending on the version, more interfaces. For a flexible bind to field buses and external input and output devices provide the protocols CANopen, PROFIBUS D and Modbus TCP/UDP/RTU. This field bus systems configure comfortably directly in the development environment. The Ethernet interfaces with integrated switch support all the essential IT protocols. In addition to its extensive interfaces of the PFC 200 XTR enough storage space for your applications. Ensure the internal flash memory as well as the integrated interface for SD/SHDC cards.
An extreme temperature resistance, resistance to interference as well as voltage and resistance to vibration are outstanding characteristics of the WAGO I/O system 750 XTR. This makes it the first choice for demanding applications. Shipbuilding and the on-/offshore industry
International approvals, including, in particular, with industry-specific character, among other things, enable the use in shipbuilding. The achieved environment categories allow both at the ship diesel as well as in the
Emc-sensitive area of the bridge. Because the requirements for the noise immunity or interference emission and mechanical strength in this area significantly larger, this also other sectors.
This text is machine translated.
An extreme temperature resistance, resistance to interference as well as voltage and resistance to vibration are outstanding characteristics of the WAGO I/O system 750 XTR. This makes it the first choice for demanding applications. Shipbuilding and the on-/offshore industry
International approvals, including, in particular, with industry-specific character, among other things, enable the use in shipbuilding. The achieved environment categories allow both at the ship diesel as well as in the
Emc-sensitive area of the bridge. Because the requirements for the noise immunity or interference emission and mechanical strength in this area significantly larger, this also other sectors.
This text is machine translated.
