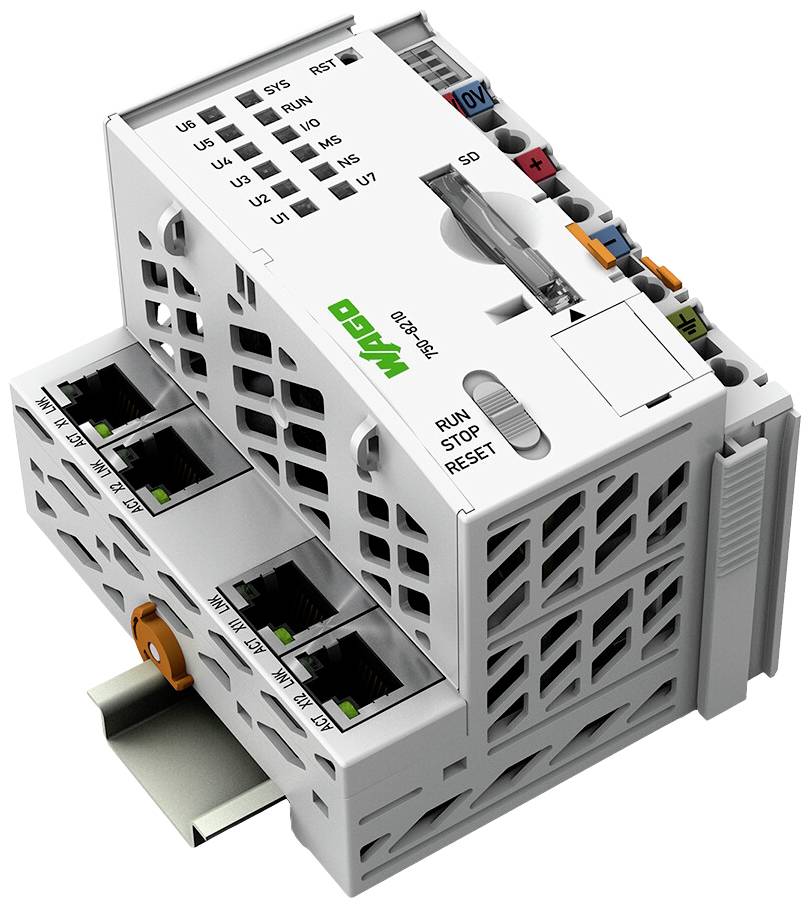

WAGO 750-8210 Controller module 750-8210 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
PFC200 controller; 2. Generation; 4 X ETHERNET
- Programmable according to IEC 61131-3Programmable with WAGO-I/O-PRO V2.3 or e!COCKPITDirect connection of WAGO I/O modules4 x ETHERNET (configurable)Linux® operating system with RT preemption patchConfiguration with CODESYS, e!COCKPIT or Web-based management interfaceMaintenance free
Technical specifications
- Product type
Controller module
- Interfaces
Ethernet
- Type
750-8210
- Operating voltage
24 V DC
- Height
100 mm
- Length
71.9 mm
- Width
78.6 mm
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
IP20
- Dim
(L x W x H) 71.9 x 78.6 x 100 mm
- Manufacturer part #
750-8210
- Transfer rate
10 / 100 MBit/s
- Weight
215.4 g
- Connection
Spring-loaded heavy duty connector
- Factory colour
Light grey
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2624926 WAGO 750-8210 Controller module 750-8210 1 pc(s)
Description
The PFC200 controller is a compact controller on the modular WAGO I/O system. In addition to the network and fieldbus interfaces, it supports digital and analogue modules as well as special modules of the 750/753 series. The four ETHERNET interfaces and the integrated switch enable the wiring in line topology. An embedded Web server provides the user with configuration options and status information via the PFC200.
