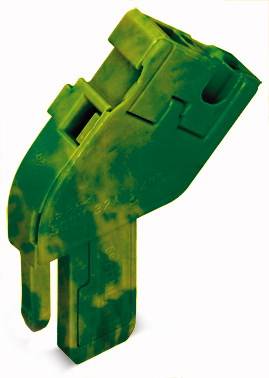

WAGO 769-512/000-016 Terminal 5 mm Pull spring Configuration: Terre Green, Yellow 250 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Terminal
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
1-Conductor start module
- 769-512/000-016
Technical specifications
- Packaging type
Package
- Product type
Terminal
- Features
+ CAGE CLAMP®
- Connection
Pull spring
- Configuration
Terre
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Factory colour
Green
Yellow
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Nominal voltage
500 V
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Manufacturer part #
769-512/000-016
- Content
250 pc(s)
- Industrial packaging
Yes
- Type
769-512/000-016
- Dim
(L x W x H) 5 x 5 x 37.10 mm
- Width
5 mm
- Height
37.10 mm
- Length
5 mm
- Weight
2.613 g
- Flammability rating
V0
- Insulation material
Thermoplastic material
- UKCA
yes
