Buy WAGO 770-855/062-000 Mains connector WINSTA MIDI Plug, vertical mount Total number of pins: 5 25 A Grey 50 pc(s)

A grey electrical connector with numbered inputs 1 to 5, suitable for the secure connection of electrical cables.

Two technical diagrams currently show straight and angled structural forms with dimensions. The hole diameter is 1.4 ±0.1 mm.

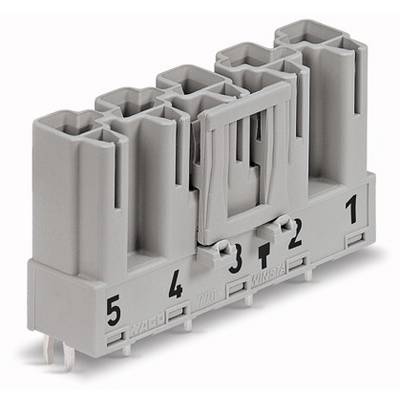

Grey plug connector with five numbered connections from 1 to 5. The connector has a rectangular body and is viewed from the side.

1/3

Product type

Mains connector

Connector type

Plug, vertical mount

Total no. of pins

Connection

Soldering

Nominal voltage

400 V

Datasheet (PDF)

Sales and shipping:

Number (Package size 50 pc(s))

Set(s)

Total (€ 3.11 / piece)

€

Report legal concerns

Highlights & Details

Connector

770-855/062-000
Industrial packaging, pack of 50
This text is machine translated.

Technical specifications

Product type: Mains connector

Connector type: Plug, vertical mount

Total no. of pins: 5

Connection: Soldering

Nominal voltage: 400 V

Factory colour: Grey

Content: 50 pc(s)

Nominal current: 25 A

Nominal current - rounded value: 25 A

Manufacturer part #: 770-855/062-000

Industrial packaging: Yes

Coding: B

Contact material: Copper alloy

Number of pins: 5

Width: 47 mm

Height: 26 mm

Series: WINSTA MIDI

Type: 770-855/062-000

Documents & Downloads

Datasheet

Datasheet 1642554 WAGO 770-855/062-000 Mains connector WINSTA MIDI Plug, vertical mount Total number of pins: 5 25 A Grey 50 pc(s)
