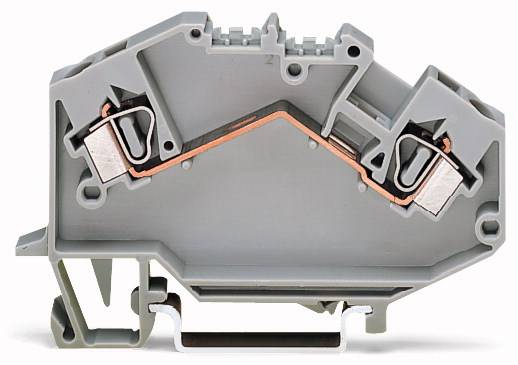

WAGO 781-992 Continuity 6 mm Pull spring Configuration: L Grey 50 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
2-conductor-through term ex e II
- 781-992
Technical specifications
- Packaging type
Package
- Product type
Continuity
- Features
Complies with ATEX Ex-e II standards
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
6 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
30 A
- Nominal current - rounded value
30 A
- Nominal voltage
750 V
- Stripping length (max.)
9 mm
- Manufacturer part #
781-992
- Content
50 pc(s)
- Industrial packaging
Yes
- Type
781-992
- Dim
(L x W x H) 6 x 6 x 43.50 mm
- Width
6 mm
- Height
43.50 mm
- Length
6 mm
- Weight
9.564 g
- Connector colour
Grey
- UKCA
not relevant
