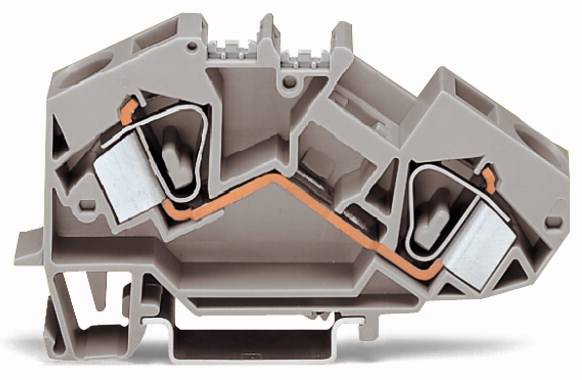

WAGO 783-601 Continuity 12 mm Pull spring Configuration: L Grey 25 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
16 mm²
Cross section (inflexible) (max.)
16 mm²
Nominal current - rounded value
76 A
Datasheet (PDF)
Number (Package size 25 pc(s))
Total (€ 3.87 / piece)
€ 96.63
plus VAT.
14-day return policy included
Highlights & Details
2-conductor through terminal
- 783-601
- Industrial packaging, pack of 25
- This text is machine translated.
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Configuration
L
- Cross section (flexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
16 mm²
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (inflexible) (max.)
16 mm²
- AWG (min.)
24
- AWG max.
6
- Clamp width
12 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Grey
- Nominal current
76 A
- Nominal current - rounded value
76 A
- Nominal voltage
1000 V
- Stripping length (max.)
16 mm
- Manufacturer part #
783-601
- Content
25 pc(s)
- Industrial packaging
Yes
- Type
783-601
- Dim
(L x W x H) 12 x 12 x 43.50 mm
- Width
12 mm
- Height
43.50 mm
- Length
12 mm
- Contamination level
3
- Weight
31.694 g
- UKCA
yes
