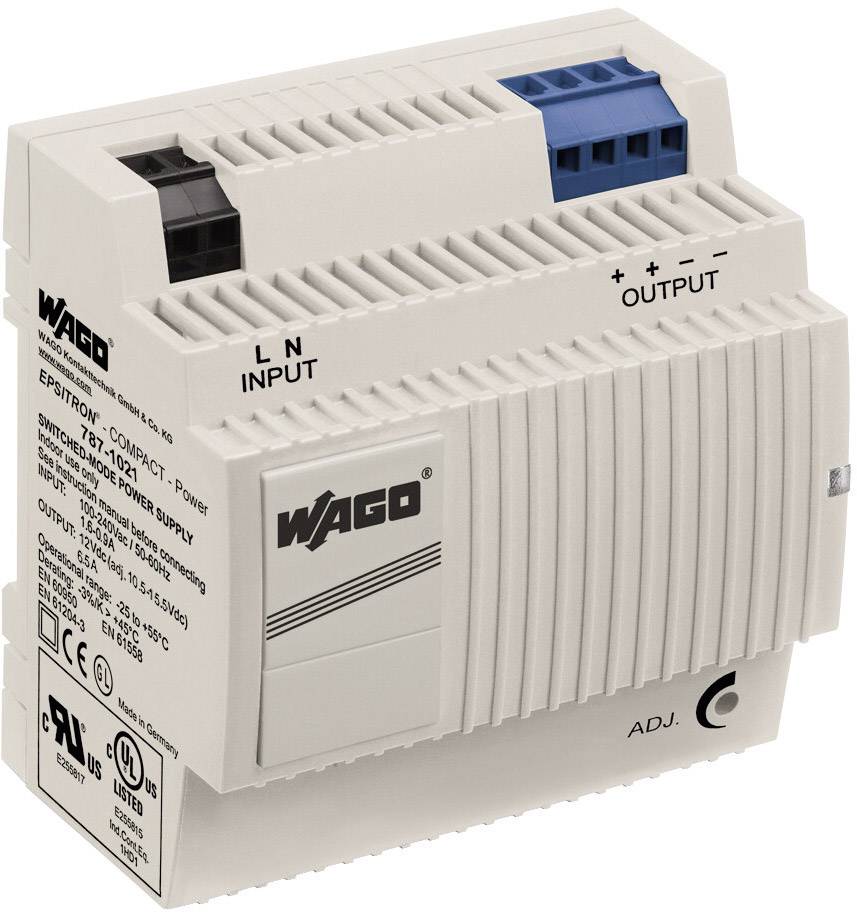

WAGO 787-1021 Rail mounted PSU (DIN) 12 V DC 6.5 A 78 W No. of outputs:1 x Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Only 1 Piece(s) available
Primary switch mode EPSITRON® COMPACT Power supplies
Highlights & Details
- Output voltage: 12 V/DC
- LED status indicator
Technical specifications
- COMPACT-NETZGERÄT 12V 6,5A PRIM.GET.
- Nominal input voltage
115 V/AC
230 V/AC
- Type
Synchronised
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
85 V AC
- Output voltage
12 V DC
- Input voltage
85 - 264 V/AC, 120 - 373 V DC
- Input voltage (max.)
264 V AC
- Max. output current
6.5 A
- Output current (max.) - rounded
6.5 A
78 W
- Output type (power supply units)
Fixed voltage
- Phases
1
- Output voltage (nominal)
12 V DC
- No. of outputs
1 x
- Connection
Spring-loaded terminal
- Dim
(W x H x D) 90 x 89 x 59 mm
- Weight
300 g
- Output voltage (max.)
15.5 V DC
- Output voltage (min.)
10.5 V DC
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
- Manufacturer part #
787-1021
- Content
1 pc(s)
- Width
90 mm
- Height
89 mm
- Type
EPSITRON® COMPACT POWER 787-1021
- Depth
59 mm
- Output current (details)
6.5 A
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 414847 WAGO 787-1021 Rail mounted PSU (DIN) 12 V DC 6.5 A 78 W No. of outputs:1 x Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 414847 WAGO 787-1021 Rail mounted PSU (DIN) 12 V DC 6.5 A 78 W No. of outputs:1 x Content 1 pc(s)
Description
Primary-switched power supply Stepped profile, ideal for service distribution or system distributor. Protection class 2.
This text is machine translated.
This text is machine translated.
Features
- Prepared for devices and systems of the protection class 2
- Self-cooling by natural convection in a horizontal installation position.
