WAGO 787-844/000-002 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

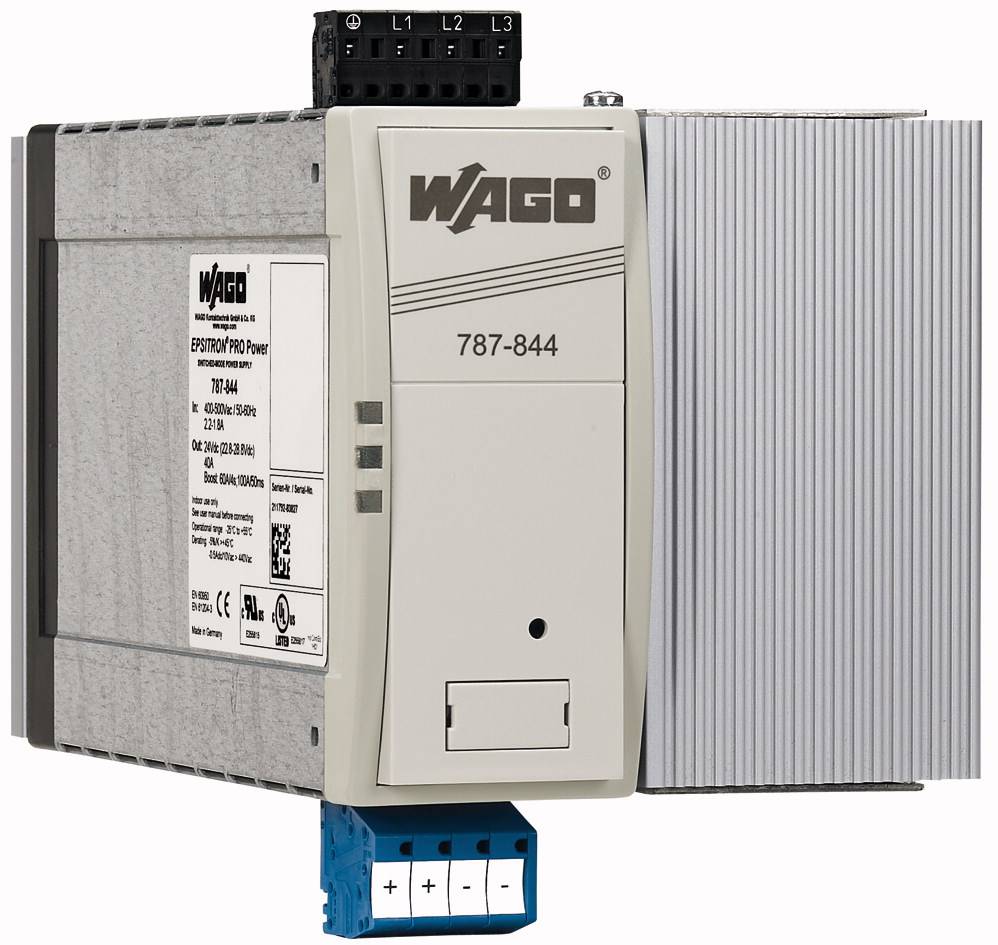

Power supply module by WAGO, model 787-844, grey with labelling, connections at top and bottom, product view.

Power supply module by WAGO, model 787-844, grey with labelling, connections at top and bottom, product view.

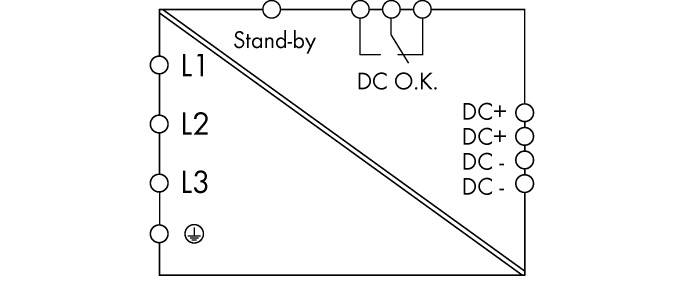

'Circuit diagram with standby switch and DC OK indicator; four inputs L1 to L3 on the left, four DC+ and DC- outputs on the right.'

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Rail mounted PSU (DIN)

Min. input voltage: 340 V AC

Input voltage (max.): 550 V AC

Max. output current: 40 A

Output current (max.) - rounded: 40 A

: 960 W

Output type (power supply units): Adjustable

Phases: 3

Output voltage (nominal): 24 V DC

No. of outputs: 1 x

Connection: Spring-loaded terminal

Dim: (L x W x H) 205 x 128 x 171 mm

Output voltage (max.): 28.8 V DC

Output voltage (min.): 22.8 V DC

Manufacturer part #: 787-844/000-002

Content: 1 pc(s)

PSU features: Regulated

Width: 128 mm

Height: 171 mm

Length: 205 mm

Type: 787-844/000-002

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 641028 WAGO 787-844/000-002 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 641028 WAGO 787-844/000-002 Rail mounted PSU (DIN) 24 V DC 40 A 960 W No. of outputs:1 x Content 1 pc(s)
