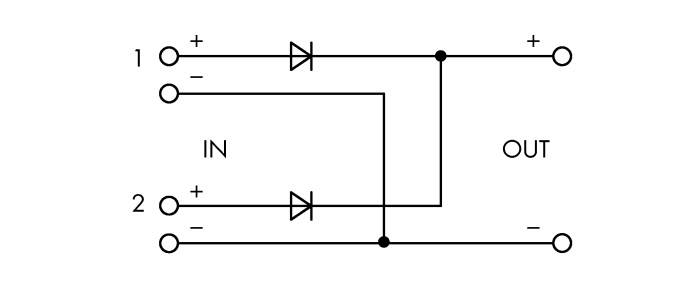

Electrical circuit diagram of a rectifier. On the left: two inputs with diodes. On the right: output '+', '-'. Diodes connected in series.

Electrical circuit diagram of a rectifier. On the left: two inputs with diodes. On the right: output '+', '-'. Diodes connected in series.

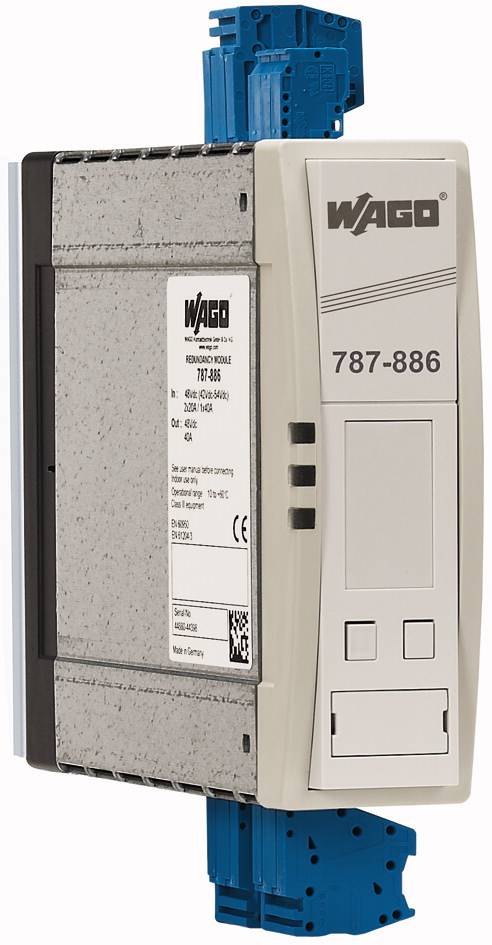

A grey WAGO power supply module, model 787-886, with technical details and a white front panel, photographed from the side.

1/2

WAGO

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Nominal input voltage: 2 x 48 V/DC

Product type: Rail mounted redundancy (DIN)

Min. input voltage: 36 V DC

Inputs: 2

Input voltage (max.): 54 V DC

Max. output current: 40 A

Output current (max.) - rounded: 40 A

Output voltage (min.): 48 V DC

Output voltage (max.): 48 V DC

Connection: Spring-loaded terminal

Dim: (L x W x H) 163 x 40 x 181 mm

Weight: 860 g

Manufacturer part #: 787-886

Width: 40 mm

Height: 181 mm

Length: 163 mm

Max. temperature: +60 °C

Min. temperature: -10 °C

Type: 787-886

Output voltage: 48 V DC

Output current (details): 20 A

Input voltage: 36 - 54 V DC

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 641020 WAGO 787-886 Rail mounted redundancy (DIN) 40 A

User & Safety Instructions

User & Safety Instructions 641020 WAGO 787-886 Rail mounted redundancy (DIN) 40 A
