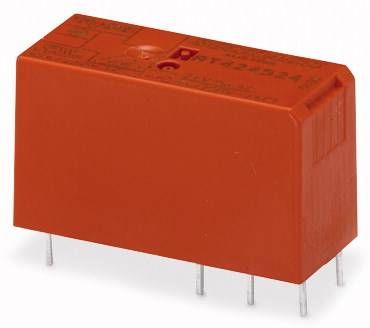

WAGO 788-164 PCB relay 60 V DC 8 A 2 change-overs 20 pc(s)
EAN:
Part number:
Item no:
Product type
PCB relay
Coil nominal voltage
60 V DC
Contact type

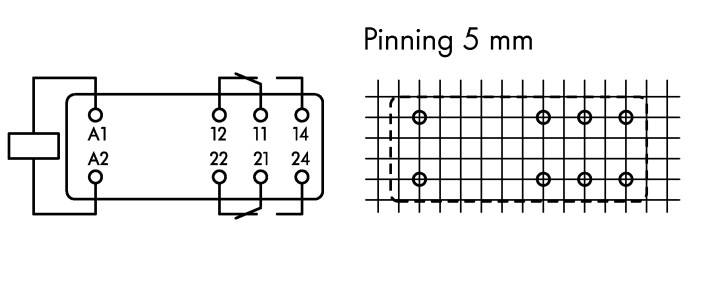

2 change-overs
Switching voltage (max.)
250 V AC
Switching current (max.)
8 A
Datasheet (PDF)
Highlights & Details
Miniature switching relay, series 788 RT
- Industrial packaging with 20 pieces
- This text is machine translated.
Technical specifications
- Product type
PCB relay
- Type
788-164
- Coil nominal voltage
60 V DC
- Contact type
2 change-overs
- Contact material
AgNi
- Switching voltage (max.)
250 V AC
- Switching current (max.)
8 A
- Max. switching capacity
2000 VA
- Connection
Solder pins
- Response time
7 ms
- Fall time
3 ms
- Durability
5 x 10 6 cycles
IP40
- Weight
13.6 g
- Length
29 mm
- Width
12.7 mm
- Height
15.7 mm
- Dim

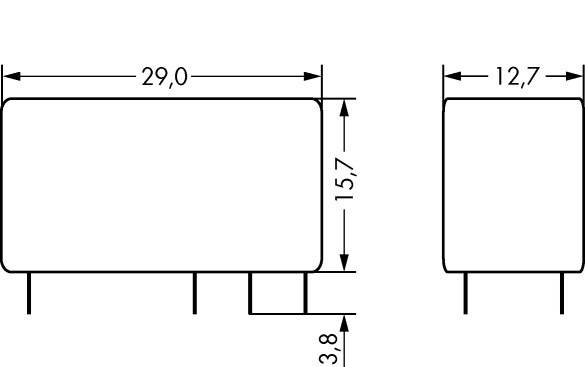

(L x W x H) 29 x 12.7 x 15.7 mm
- Industrial packaging
Yes
- Content
20 pc(s)
Documents & Downloads
Datasheet
Datasheet 653626 WAGO 788-164 PCB relay 60 V DC 8 A 2 change-overs 20 pc(s)
User & Safety Instructions
User & Safety Instructions 653626 WAGO 788-164 PCB relay 60 V DC 8 A 2 change-overs 20 pc(s)
