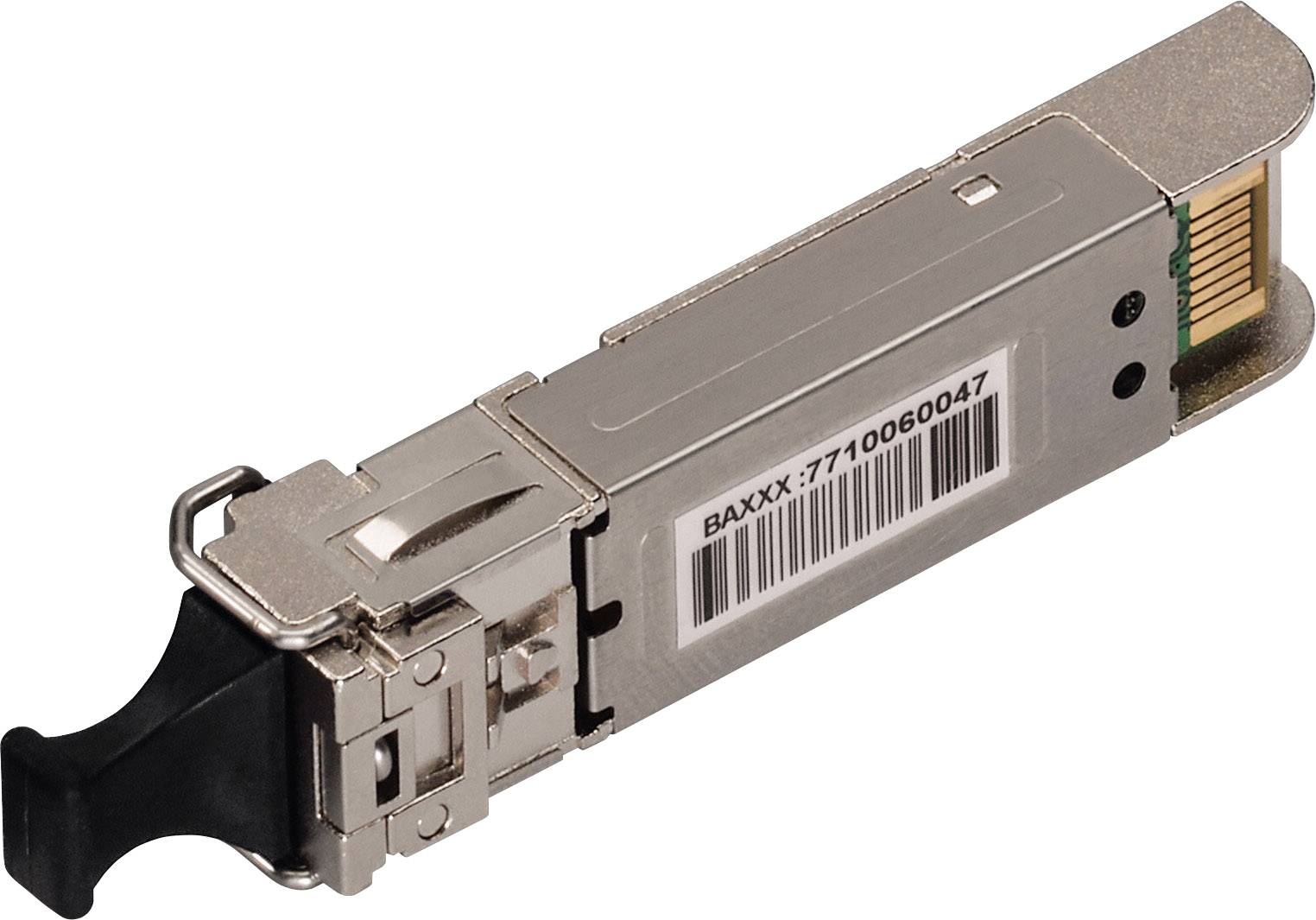

WAGO 852-1200 SFP module 1 LAN data transfer rate 1000 MBit/s Operating voltage 3.3 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
SFP modules 1000BASE;SX multi-mode 850 nm LC
- Extended temperature range
Technical specifications
- Product type
SFP module
- Fibre-optic ports
1
- LAN data transfer rate
1000 MBit/s
- Type
852-1200
- Dim
(W x H x D) 13.4 x 13.3 x 56.6 mm
- Weight
0 kg
- Operating voltage
3.3 V
- Width
13.4 mm
- Height
13.3 mm
- Depth
56.6 mm
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-40 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1924048 WAGO 852-1200 SFP module 1 LAN data transfer rate 1000 MBit/s Operating voltage 3.3 V
User & Safety Instructions
User & Safety Instructions 1924048 WAGO 852-1200 SFP module 1 LAN data transfer rate 1000 MBit/s Operating voltage 3.3 V
Description
Duplex LC connector (optical)
Industry standard SFP (Small Form-Factor Pluggable)
Compatible with Gigabit Ethernet Standard IEEE 802.3z
Differential LVPECL-inputs and outputs
Supply voltage 3.3 V
This text is machine translated.
Industry standard SFP (Small Form-Factor Pluggable)
Compatible with Gigabit Ethernet Standard IEEE 802.3z
Differential LVPECL-inputs and outputs
Supply voltage 3.3 V
This text is machine translated.
