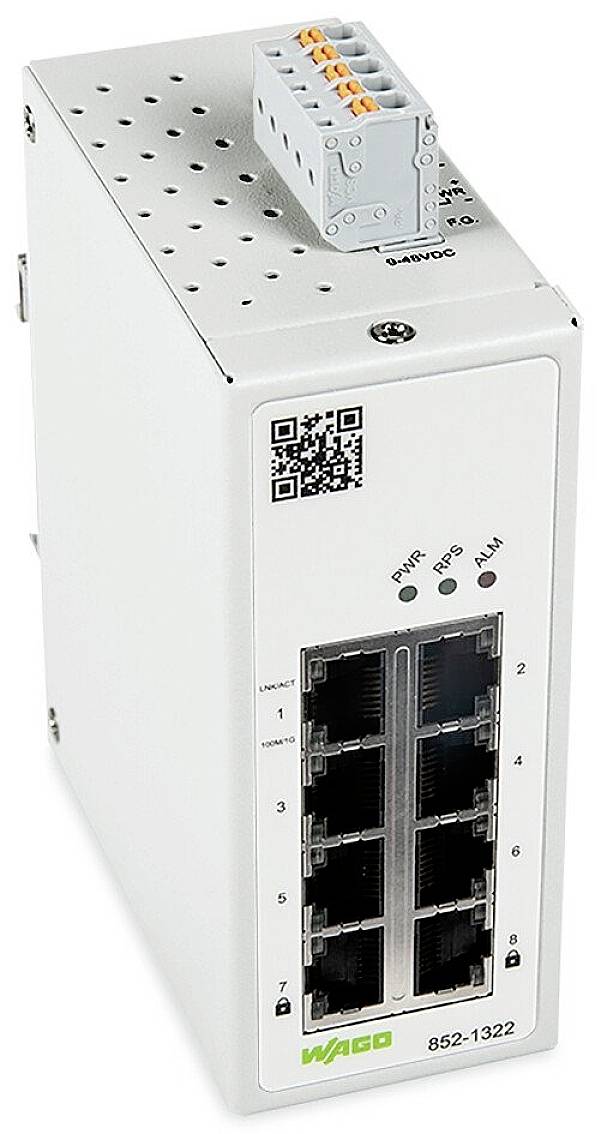

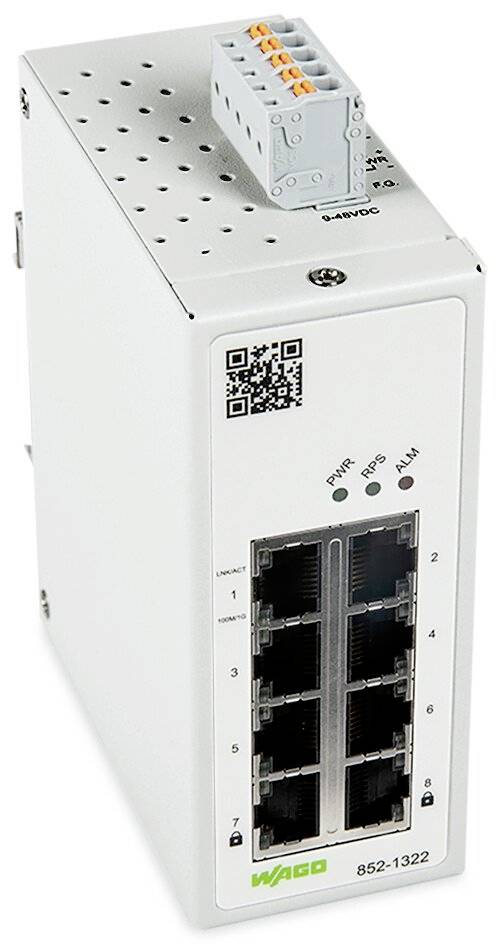

WAGO 852-1322 852-1322 Network switch 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:
Highlights & Details
Industrial managed switch; 8-port 1000BASE-T; MAC security
- Web-based (HTTP(S))Configuration and diagnostics via SNMPv3Redundant DC power supplySupply voltage range: DC 9 … 48 V.Fully compatible with IEEE802.3, 802.3u, 802.3x, 802.3ab, 802.1p, 802.1X, 802.1Q, 802.1AENon-blocking, store-and-forward switchingAutonegotiation on all 10/100/1000BASE-T portsAuto MDI/MDIX (crossover) on all 10/100/1000BASE-T portsSNMP v1/v2c/v3
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- 10/100/1000 Mbps ports
8 x
- Weight
628 g
- Width
45.30 mm
- Height
110 mm
- Depth
92 mm
- Type
852-1322
- Interfaces
RJ45
IP30
- Factory colour
Light grey
- Max. ambient temperature
+70 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2625043 WAGO 852-1322 852-1322 Network switch 10 / 100 / 1000 MBit/s
Description
The 852-1322 is an industrial, configurable ETHERNET switch, with 8 ports 10/100/1000BASE-T. Data encryption according to IEEE802.1AE (MAC security standard) is performed when communicating via ports 7 and 8. Due to this functionality and the small dimensions, this product is suitable for retrofitting the network security during operation of the automation system. The customer application remains unchanged. The optional authentication of the other nodes in the network is carried out port-specific according to IEEE 802.1X and RADIUS server. The switch has a robust housing and a redundant power supply.
