WAGO 852-1816 852-1816 Network switch 10 / 100 / 1000 MBit/s
EAN:
Part number:
Item no:
Technical specifications
- Product type
Network switch
- LAN transfer rate
10 MBit/s
100 MBit/s
1000 MBit/s
- Transfer rate
10 / 100 / 1000 MBit/s
- 10/100/1000 Mbps ports
16 x
- Weight
840 g
- Width
50 mm
- Height
160 mm
- Depth
120 mm
- Type
852-1816
- Interfaces
RJ45
IP30
- Max. ambient temperature
+85 °C
- Min. ambient temperature
-40 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2625046 WAGO 852-1816 852-1816 Network switch 10 / 100 / 1000 MBit/s
Description

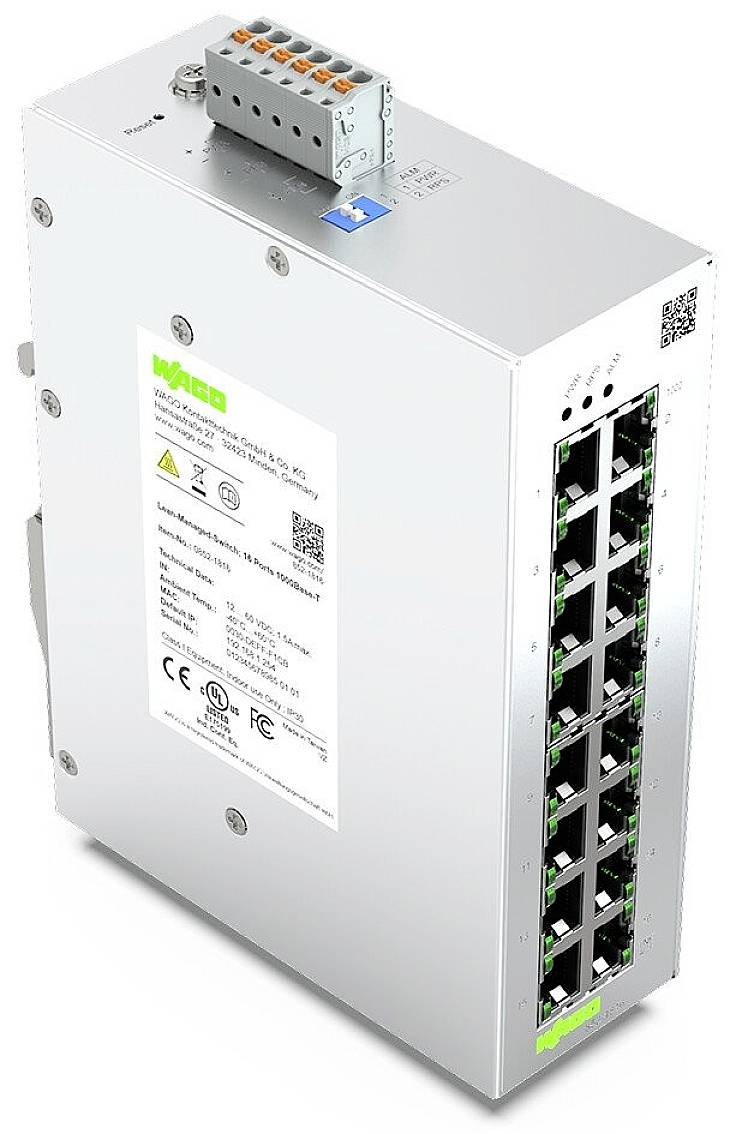

The 852-1816 is an industrial, configurable 16-port 10/100/1000BASE-T ETHERNET switchThe switch has a robust housing, a redundant power supply and a function monitoring with relay. The switch offers a slim network management: Start-up and diagnostics are intuitive and without in-depth IT knowledge possible. The topology map clearly shows the switch and the connected subscribers. Important diagnostic information is visualized in the diagnostics dashboard. The following features increase network robustness, availability, and security.
This text is machine translated.
This text is machine translated.
Features
- Safety:Network segmentation according to IEEE802.1Q (max. 5 VLANs), authentication of network subscribers according to IEEE802.1X, firewall functions with the help of the access control list (max. 32 entries)/service control, port securityAvailability:rapid Spanning Tree Protocol (RSTP) for meshed and ring networks, ETHERNET Ring Protection Switching (ERPS) for up to two rings per switch, Loop Detection and Storm Control on each portConfiguration/Diagnostics/Maintenance:Port Mirroring, Modbus® Register, SNMP v3, SNMP Traps Events, Alarm Threshold, Port Statistic, Back-up and Restore, System Log, Syslog Server, Commando Line Interface with SSH/Telnet, Topology Map and Dashboard
