WAGO 855-405/500-509 855-405/500-509 Current transformer Primary current 500 A Secondary current 5 A Push-fit 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

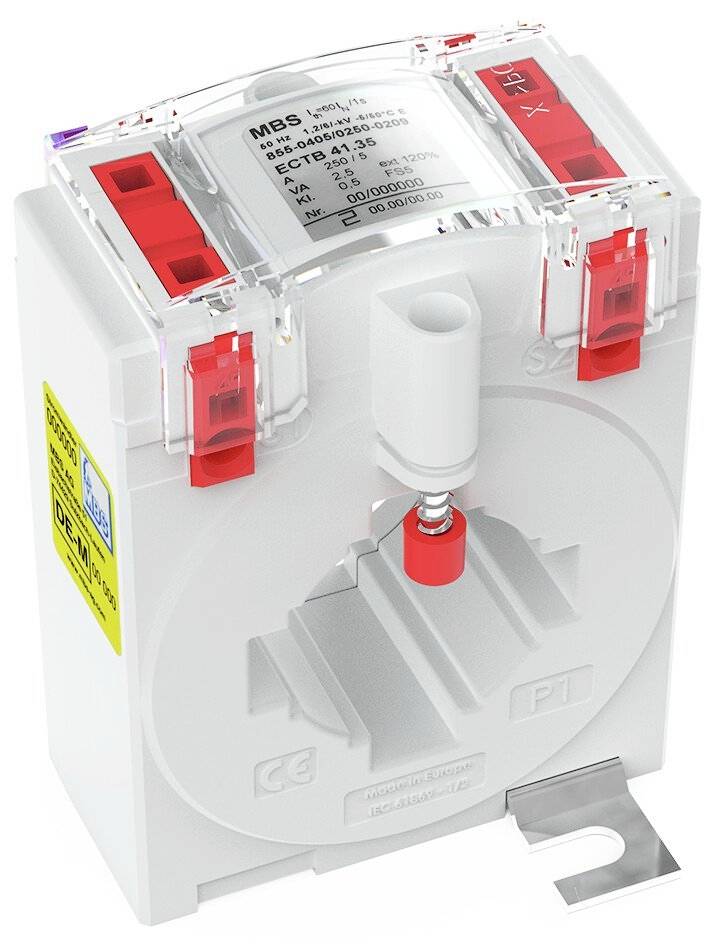

Clip-on current transformer
- Input current (current) 500 A
- Output current 5 A
Technical specifications
- Operating temperature: -5 °C to +50 °CRated power 5 VA
- Product type
Current transformer
- Fitting type
Push-fit
- Primary current
500 A
- Secondary current
5 A
5 VA
- Accuracy class
0.5
- Type
855-405/500-509

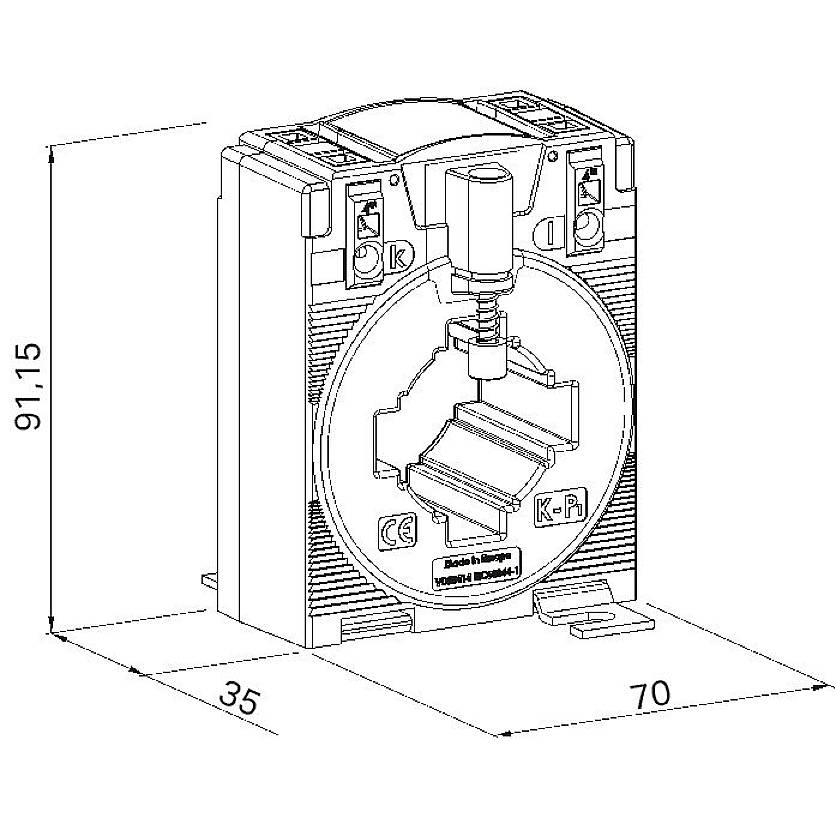

- Dim
(L x W x H) 52 x 70 x 91.15 mm
- Weight
300 g
- Output current
5 A
- Input current
500 A
- Width
70 mm
- Height
91.15 mm
- Length
52 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2625155 WAGO 855-405/500-509 855-405/500-509 Current transformer Primary current 500 A Secondary current 5 A Push-fit 1 pc(s)
Description
Plug-on current transformers for the calculation measurement of the 855 series are inductive, transformer-based, 1-conductor current transformers. Due to the applied measurement principle, current transformers of this type are suitable for use only in AC power networks. The plug-on current transformers correspond to module D of the conformity assessment procedure and can be used for billing purposes
This text is machine translated.
This text is machine translated.
Features
- Screwless connection technology with CAGE-CLAMP® connectionDifferent mounting optionsShock-proof and vibration-proofHigh mechanical holding forcesHigh current strengthCan be permanently overloaded with 120% of the primary nominal currentLow voltage transformer for operating voltages up to max. 1.2 kVUse in 690 V networks
