Buy WAGO 855-5105/1000-000 51297892 Cable current transformer Primary current 1000 A Secondary current 5 A Line feed-through

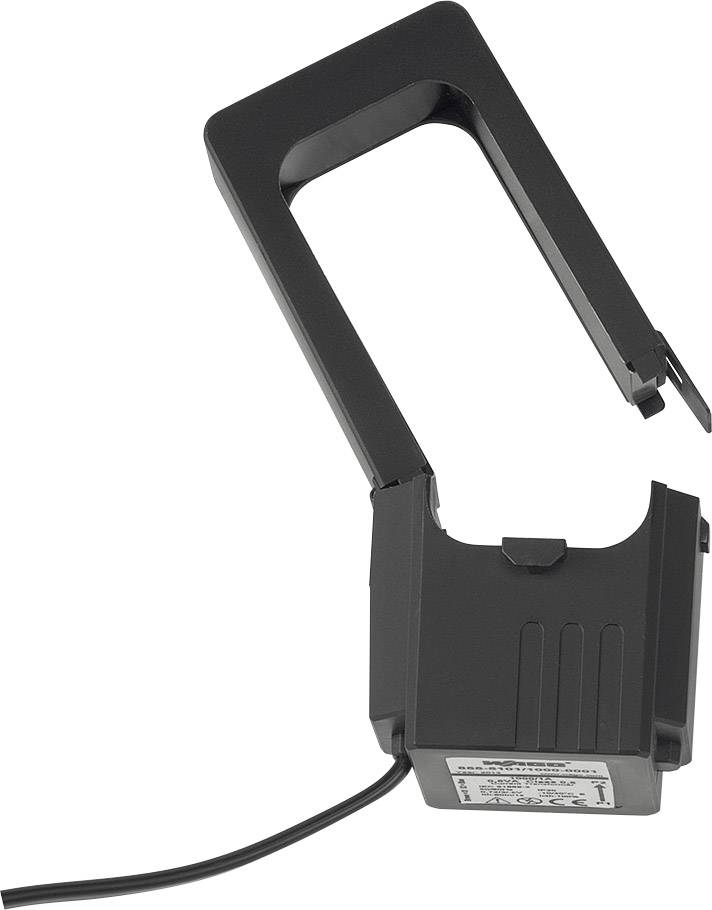

A black U-shaped Hall sensor with an attached cable. Used for measuring magnetic fields or detecting electrical current flow.

Five black telephone receivers hang in a descending row from left to right. The image shows a diminishing movement pattern.

1/2

Datasheet (PDF)

Unavailable

5 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Cable conversion current transformer 855-5105/1000-000

Line feed-through diameter 42 mm

Technical specifications

Connection cable length 3 m

Product type: Cable current transformer

Fitting type: Flip mount

Primary current: 1000 A

Secondary current: 5 A

: 0.5 VA

Line feed-through diameter: 42 mm

Accuracy class: 0.5

Type: 855-5105/1000-000

Line feed-through (W): 42 mm

Line feed-through (H x W): 85 x 42 mm

Line feed-through (H): 85 mm

: 0.5 VA

Connection: Connection cable

: Cable rebuilding current converter

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Primary current

Power

Secondary current

Line feed-through diameter

WAGO 855-3001/060-003 51292913 Cable current transformer Primary current 60 A Secondary current 1 A Line feed-through (H x W):21 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385821

60 A

0.2 VA

1 A

18 mm

WAGO 855-3001/100-003 51292914 Cable current transformer Primary current 100 A Secondary current 1 A Line feed-through (H x W):21 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385822

100 A

0.2 VA

1 A

18 mm

WAGO 855-3001/200-001 51292925 Cable current transformer Primary current 200 A Secondary current 1 A Line feed-through (H x W):21 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385823

200 A

0.2 VA

1 A

18 mm

WAGO 855-3001/250-001 51292926 Cable current transformer Primary current 250 A Secondary current 1 A Line feed-through (H x W):21 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385824

250 A

0.2 VA

1 A

18 mm

WAGO 855-4001/100-001 51292915 Cable current transformer Primary current 100 A Secondary current 1 A Line feed-through (H x W):19 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385873

100 A

0.2 VA

1 A

18 mm

WAGO 855-4001/150-001 51292916 Cable current transformer Primary current 150 A Secondary current 1 A Line feed-through (H x W):19 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385874

150 A

0.2 VA

1 A

18 mm

WAGO 855-4001/200-001 51292917 Cable current transformer Primary current 200 A Secondary current 1 A Line feed-through (H x W):19 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385875

200 A

0.2 VA

1 A

18 mm

WAGO 855-4005/150-101 51297886 Cable current transformer Primary current 150 A Secondary current 5 A Line feed-through (H x W):21 x 18 mm Line feed-through diameter:18 mm Flip mount 1 pc(s)

Item no:1385876

150 A

1 VA

5 A

18 mm

WAGO 855-4101/200-001 51292918 Cable current transformer Primary current 200 A Secondary current 1 A Line feed-through (H x W):27.5 x 28 mm Line feed-through diameter:28 mm Flip mount 1 pc(s)

Item no:1385877

200 A

0.2 VA

1 A

28 mm

WAGO 855-4101/250-001 51292919 Cable current transformer Primary current 250 A Secondary current 1 A Line feed-through (H x W):27.5 x 28 mm Line feed-through diameter:28 mm Flip mount 1 pc(s)

Item no:1385878

250 A

0.2 VA

1 A

28 mm

Documents & Downloads

Datasheet

Datasheet 1385889 WAGO 855-5105/1000-000 51297892 Cable current transformer Primary current 1000 A Secondary current 5 A Line feed-through

User & Safety Instructions

User & Safety Instructions 1385889 WAGO 855-5105/1000-000 51297892 Cable current transformer Primary current 1000 A Secondary current 5 A Line feed-through

Description

The compact divisible cable conversion current transformers are specially designed for retrofitting in existing systems. Cable conversion converter find in particular application in cases in which the current path will not be interrupted. The accuracy of the cable conversion converter leads to especially precise current measurements. The cable conversion current transformers are with the specified rated power at the end of the cable can be loaded. All transformers are designed with color-coded cable. Two enclosed UV resistant cable ties guarantee a secure and easy installation.

This text is machine translated.

Features

Ratios of primary and secondary side 60 A up to 1000 A 1 A or 5 A
No interruption of the measuring lead
Ideal for use in very small spaces
Particularly fast mounting
For application to isolated conductors up to Ø 42 mm
Compact and scharnierbar
Color-coded connection cables of up to 5 m.
