WAGO 855-9450/2000-1751 855-9450/2000-1751 Current transformer Primary current 1000 A Line feed-through diameter:175 mm
EAN:
Part number:
Item no:
Highlights & Details
Rogowski coil; primary rated current 1000 A; output signal 22.5 mV per kA
- Input current (current) 1000 A

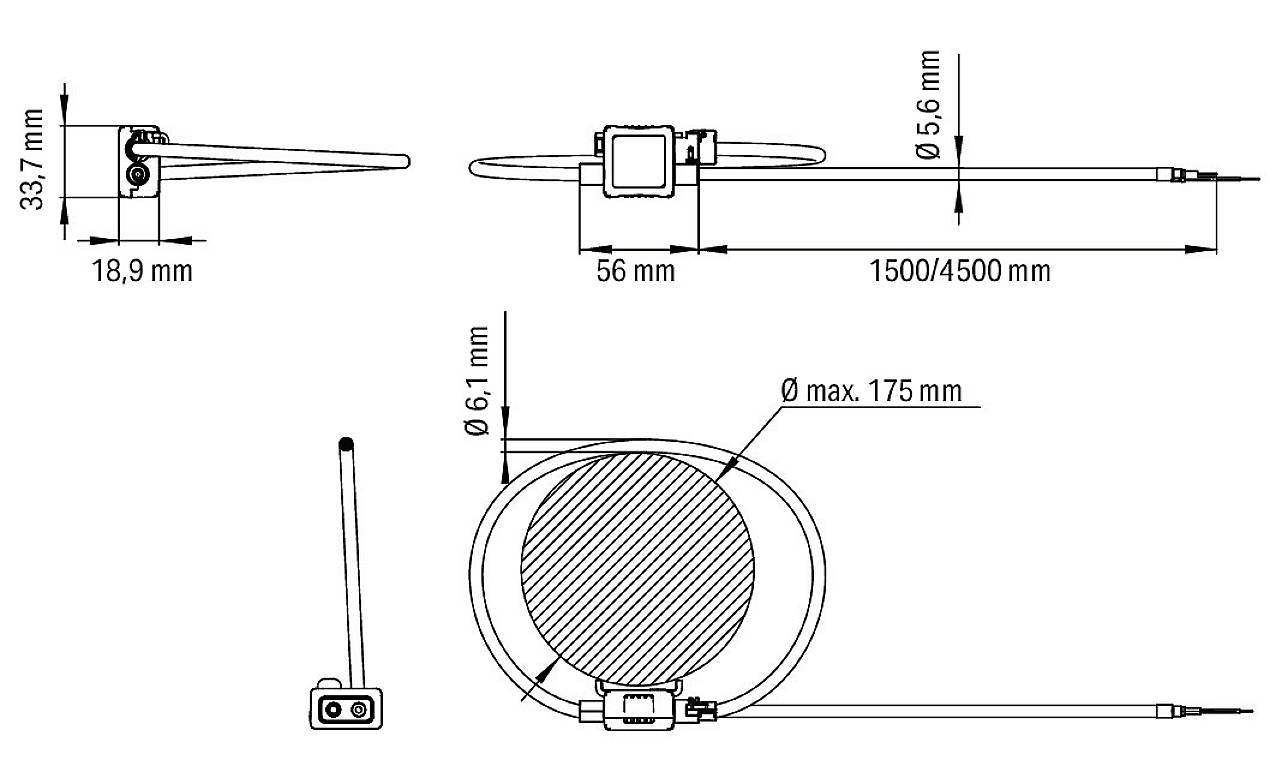

- Line feed-through diameter 175 mm
Technical specifications
- Ambient temperature (operating) -40 °C to +80 °C.Cable length 4.50 mProtection class: IP57
- Product type
Current transformer
- Primary current
1000 A
- Line feed-through diameter
175 mm
- Accuracy class
0.5
- Type
855-9450/2000-1751
- Weight
130 g
- Input current
1000 A
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2625048 WAGO 855-9450/2000-1751 855-9450/2000-1751 Current transformer Primary current 1000 A Line feed-through diameter:175 mm
Description
The Rogowski coils are used for current measurement of AC currents and are particularly suitable for subsequent installation in inventory systems. The divisible coil body enables the subsequent installation around the primary conductor – either busbar or round conductor. The Rogowski coils are suitable for connection to the WAGO products (857-552; 750-495/000-002; 2857-570/024-000). A sealable bayonet lock and fixing straps for cable ties enable an easy installation.
