'IN+' and 'OUT+' at the top, 'GND' and 'Us+' at the bottom. Centre shows 'IN' and 'OUT', bottom shows 'POWER'. Connections 1-8 numbered.

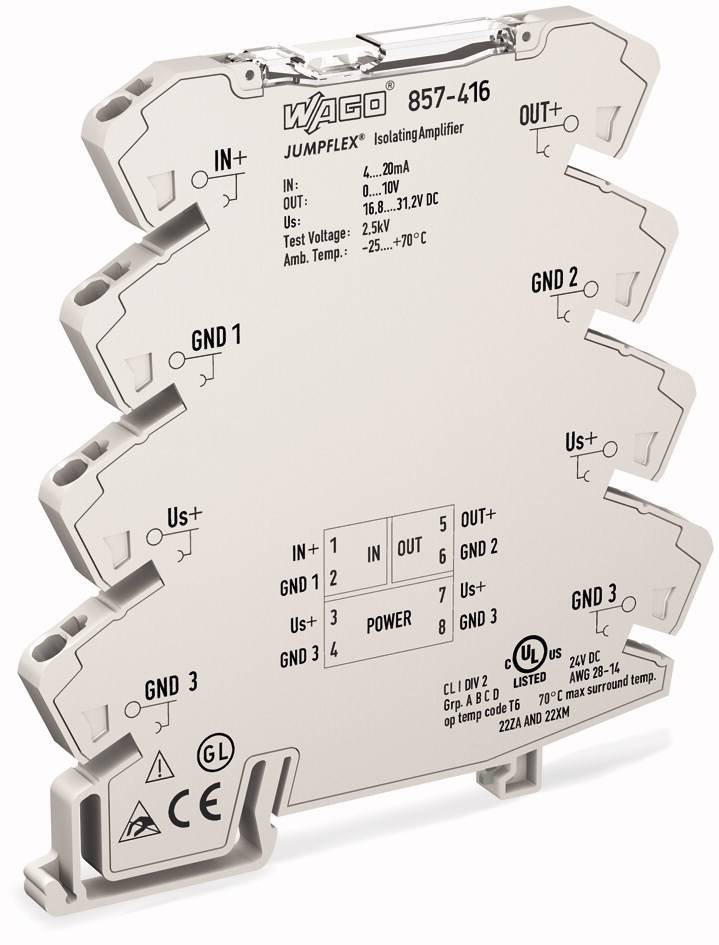

Electronic module 'WAGO JUMPFLEX 857-416 Isolating Amplifier' for signal processing, connections and specifications visible.

1/3

Product type

Isolation amplifier

Type

857-416

Dim

(L x W) 96 mm x 6 mm

Load

≤ 600 Ω (I-Output) ≥2 kΩ (U-output)

Input signal (voltage)

fest eingestellt für Spannungssignale

Datasheet (PDF)

WAGO

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Type: 857-416

Product type: Isolation amplifier

Dim: (L x W) 96 mm x 6 mm

Load: ≤ 600 Ω (I-Output) ≥2 kΩ (U-output)

Input signal (voltage): fest eingestellt für Spannungssignale

Content: 1 pc(s)

Configuration: not adjustable

Width: 6 mm

Length: 96 mm

Current consumption: ≤ 25 mA

Setting: Setting time (T 10-90)< 3.5 ms

Supply voltage: 24 V DC

: Snap mounting support rail

: 6

: 96 mm

: 94 mm

: -25-70 °C

: Spring clamp connection

: IP20

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 640969 WAGO 857-416 857-416 Isolation amplifier 1 pc(s)

User & Safety Instructions

User & Safety Instructions 640969 WAGO 857-416 857-416 Isolation amplifier 1 pc(s)

What kind of Transducers (Misc.) are you looking for?

Isolation amplifier
