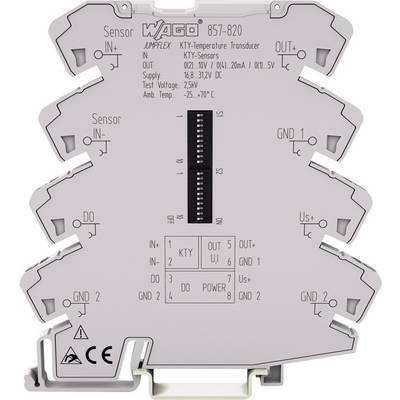

WAGO 857-820 KTY Measuring Transducer Content: 1 pc(s)
EAN:
Part number:
Item no:
Product type
Frequency transformer
Type
857-820
Dim
(L x W x H) 94 x 6 x 96 mm
Output (voltage)
0 - 10 V. 2 - 10 V. 0 - 5 V. 1 - 5 V
Output (current)
0 - 20 mA. 4 - 20 mA. 0 - 10 mA sowie 2 - 10 mA
Datasheet (PDF)
Highlights & Details
WAGO 857-820 KTY Measuring Transducer Content: 1 pc(s)
- JUMPFLEX® measuring transducer
Technical specifications
- Type
857-820
- Product type
Frequency transformer
- Dim
(L x W x H) 94 x 6 x 96 mm
- Output (voltage)
0 - 10 V. 2 - 10 V. 0 - 5 V. 1 - 5 V
- Output (current)
0 - 20 mA. 4 - 20 mA. 0 - 10 mA sowie 2 - 10 mA
- Load
600 ohm
- Content
1 pc(s)
- Width
6 mm
- Height
96 mm
- Length
94 mm
- Current consumption
< 40 mA
- Insulation
Polyamide 6.6
- Type
Configuration via DIP switch
- Connection
Spring
- Output signal
0 – 20 mA, 4 – 20 mA, 0 – 10 V, 2 – 10 V, 0 – 5 V, 1 – 5 V, 0 – 10 mA, 2 – 10 mA
- Input signal
KTY sensors
0.05 kg/m
FALSE
-25-70 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 739636 WAGO 857-820 KTY Measuring Transducer Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 739636 WAGO 857-820 KTY Measuring Transducer Content: 1 pc(s)
Description
The KTY temperature measurement converter is optimized for KTY sensors with all the common characteristics. The KTY temperature measurement converter converts the output temperature signal into an analogue standard signal. This signal can be
0 – 20 mA, 4 – 20 mA, 0 – 10 V, 2 – 10 V, 0 – 5 V, 1 – 5 V, 0 – 10 mA or 2 – 10 mA. The device features 3-way galvanic isolation with a test voltage of 2.5 kV.
0 – 20 mA, 4 – 20 mA, 0 – 10 V, 2 – 10 V, 0 – 5 V, 1 – 5 V, 0 – 10 mA or 2 – 10 mA. The device features 3-way galvanic isolation with a test voltage of 2.5 kV.
