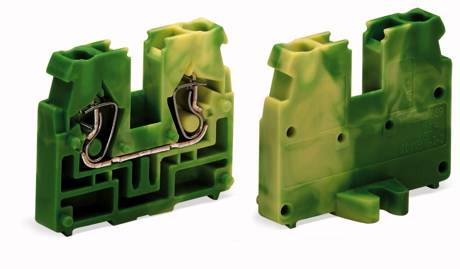

WAGO 869-307 Continuity 5 mm Spring-loaded terminal Green, Yellow 100 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Continuity
Connection
Spring-loaded terminal
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
2.50 mm²
Datasheet (PDF)
Highlights & Details
End terminal with mounting flange M3
- 869-307
Technical specifications
- Packaging type
Piece
- Product type
Continuity
- Features
+ CAGE CLAMP®
+ sleeve
- Connection
Spring-loaded terminal
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5 mm
- Number of pins
1
- Factory colour
Green
Yellow
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Min. stripping length
6 mm
- Stripping length (max.)
7 mm
- Manufacturer part #
869-307
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
869-307
- Dim
(L x W x H) 5.00 x 33.40 x 27.60 mm
- Width
33.40 mm
- Height
27.60 mm
- Length
5.00 mm
- Weight
4.239 g
- Flammability rating
V0
- Insulation material
Thermoplastic
- UKCA
not relevant
