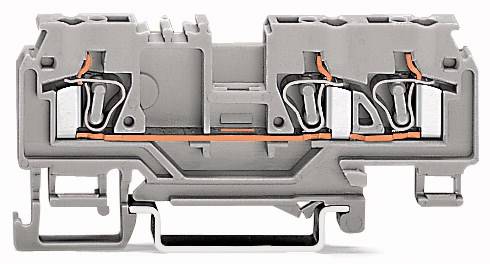

WAGO 880-682 Continuity 5 mm Pull spring Orange 100 pc(s) Package
EAN:
Part number:
Item no:
Packaging type
Package
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
4 mm²
Cross section (inflexible) (max.)
4 mm²
Datasheet (PDF)
Highlights & Details
3-conductor through terminal
- 880-682
Technical specifications
- Packaging type
Package
- Product type
Continuity
- Features
+ test option
- Connection
Pull spring
- Cross section (flexible) (min.)
0.08 mm²
- Cross section (flexible) (max.)
4 mm²
- Cross section (inflexible) (min.)
0.08 mm²
- Cross section (inflexible) (max.)
4 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5 mm
- No. of rows
1
- Pins per row
3
- Number of pins
3
- Factory colour
Orange
- Nominal current
25 A
- Nominal current - rounded value
25 A
- Nominal voltage
800 V
- Min. stripping length
8 mm
- Stripping length (max.)
8 mm
- Manufacturer part #
880-682
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
880-682
- Dim
(L x W x H) 5 x 5 x 29 mm
- Width
5 mm
- Height
29 mm
- Length
5 mm
- Contamination level
3
- Weight
8.679 g
- Flammability rating
V0
- Connector colour
Orange
- Insulation material
Thermoplastic
- UKCA
not relevant
