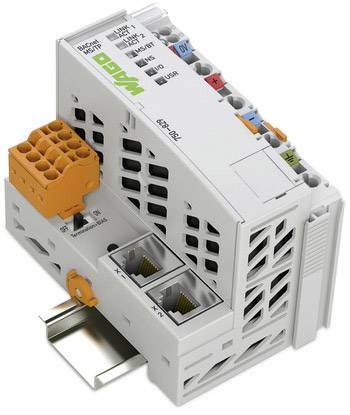

WAGO BACnet MS/TP PLC controller 750-829 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product type
PLC controller
- Interfaces
BACnet
Modbus TCP/UDP
Ethernet
- Type
BACnet MS/TP
- No. of inputs (max.)
64
- No. of outputs (max.)
64
- Operating voltage
24 V DC
- Height
71.9 mm
- Length
100 mm
- Width
61.5 mm
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
- Dim
(L x W x H) 100 x 61.5 x 71.9 mm
- Display
No
- Manufacturer part #
750-829
- Transfer rate
10 / 100 MBit/s
- Weight
168.885 g
- Factory colour
Light grey
- Mounting type
DIN rail
- Series
ETHERNET
